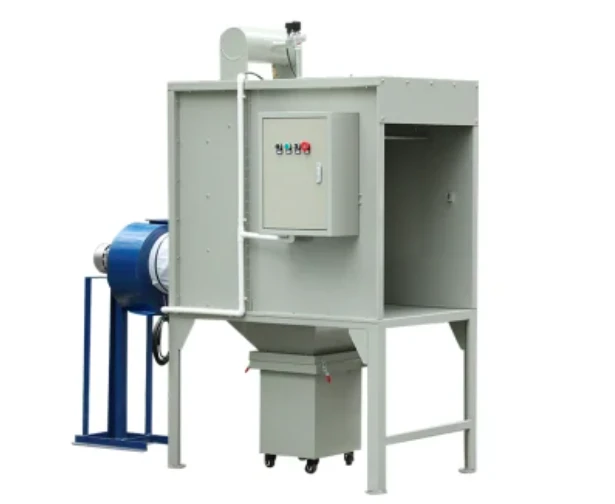

S Professional Powder Coating System,  Powder Coating Room, Powder Room Coat Companies for Small Batch

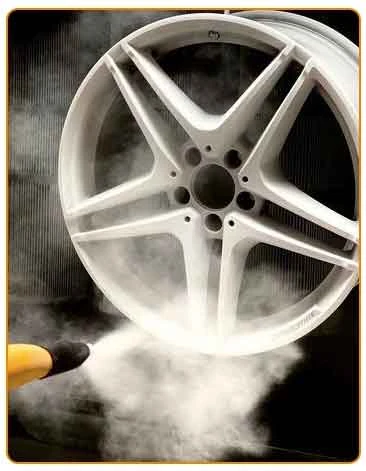

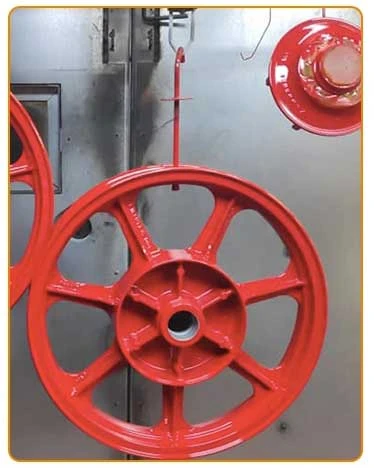

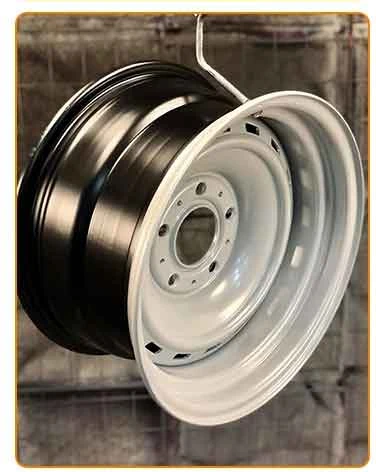

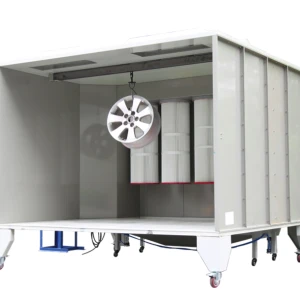

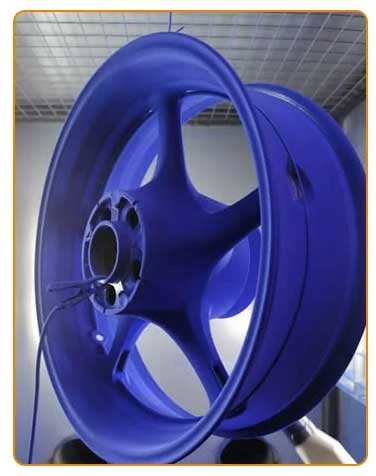

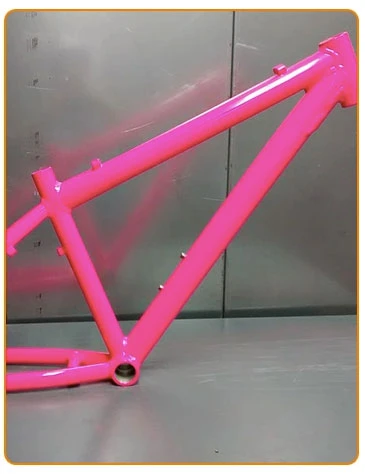

This small compact designed powder sprayer booth is unique for small patch accessories. It is suitable for small garage workshop, DIY car wheels. bike structure coating...

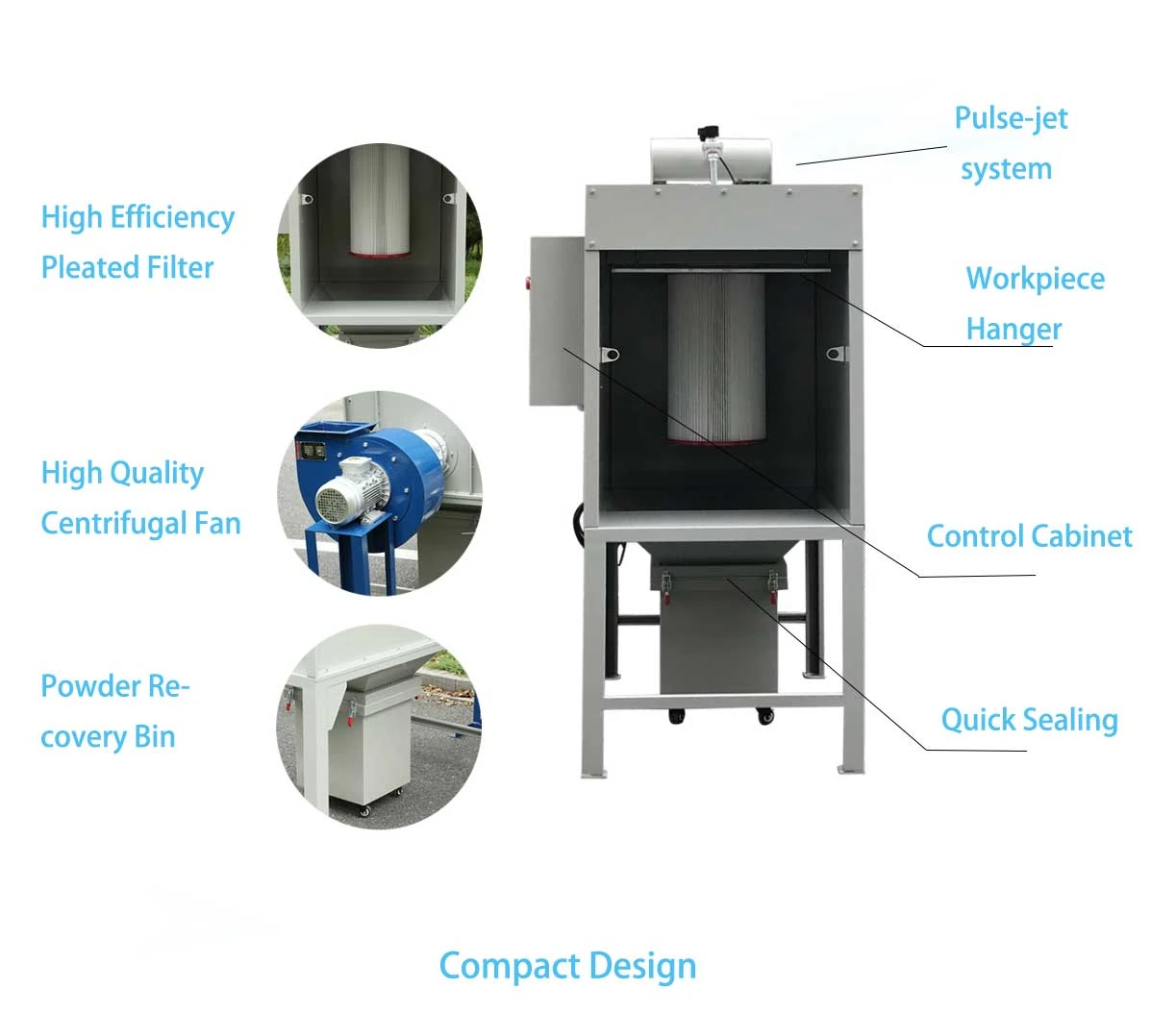

Although it is small enough, but all the functions are compacted in a union one:

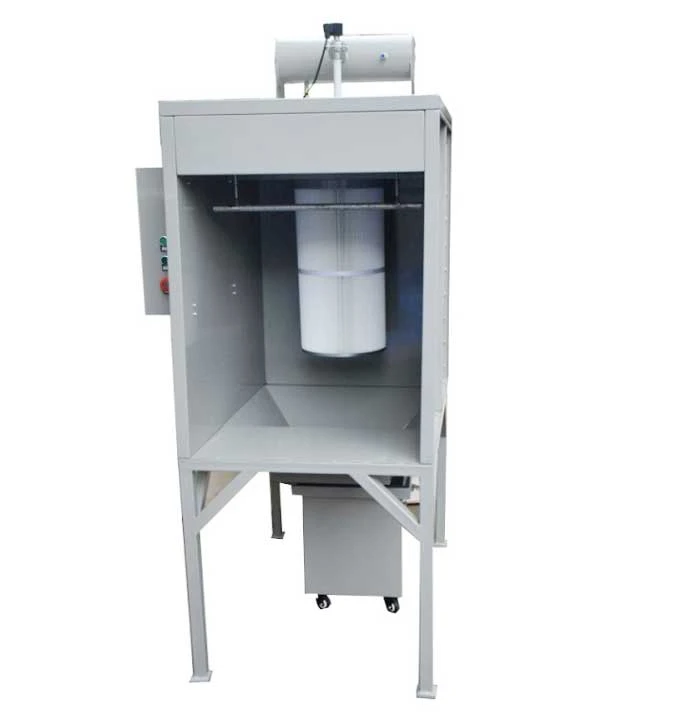

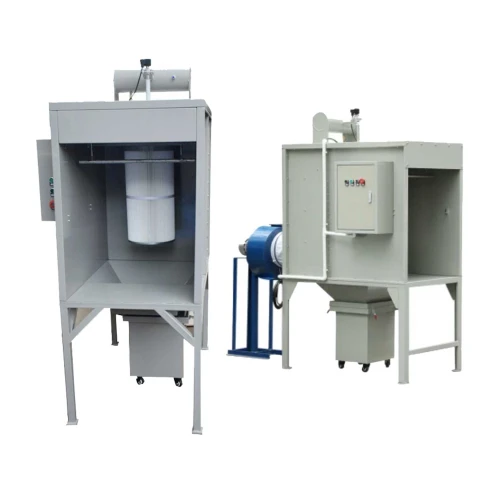

1: Open Type Cabinet Body: Depending on different size of workpiece, ACMAN designed for 4 different size booth fitting for the clients requirements;

2: Filtration System: The filters is back installed on the booths which provide excellent filtration performance, the pleated offers 3 times of filtration area than traditional filters, whose powder recycle rate could reach 99%.

3: Filter Self-Cleaning System: POWE spray booth could clean the filter automatically. Thanks to the pulse jet cleaning system, the filters do not have risks of blocking;

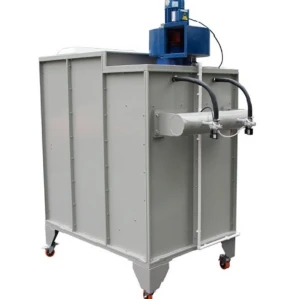

4: Centrifugal Fan system: The centrifugal fan provides big airflow and static pressure which making the system in a negative pressure atmosphere and could guarantee the powder not flying out;

5: Control SystemElectric Control we use PLC, which could working smartly and data reveals directly. It could control centrifugal fan running and stop, pulse jet cleaning mode change and ect.

6: Big Volume Dust Bin: The powder recovery bin is designed big and quick sealing. In addition, the dust bin have 4 wheels for moving.

Powder Recycle Rate Reach 99%
Technical Data
Model
POWE-S-1115
Operating Dimensions
Width700*Depth800*Heght1000mm
Overall dimensions
Width1000*Depth1600*Heght1900mm
Weight
150kg
Power Supply
220V/380V, 3Phase, 50-60HZ
Fan Power
1.5kw
Air Volume
1688-3517m3/h
Filter Count
1 pcs, Quick-release Type
Filter Material
Polyester
Filter Area
5m2
Filter Cleaning
Pulse-jet System
Applications
