ACMAN Tablet Coating Machine Dust Collector, Film Coating Pharmaceutical Coater Dust Collection Unit
- Model
- COT-B-J
Review
Description

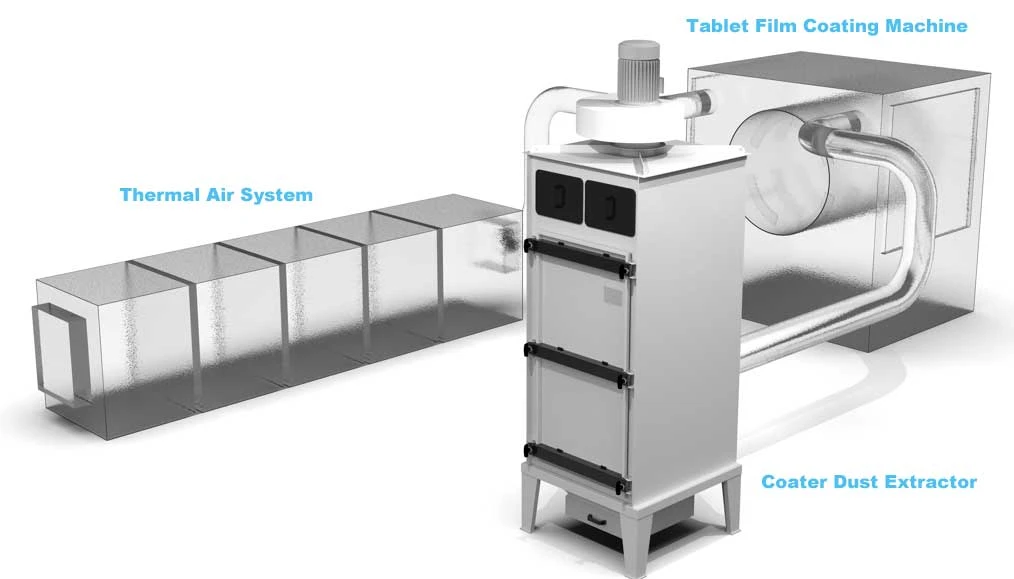

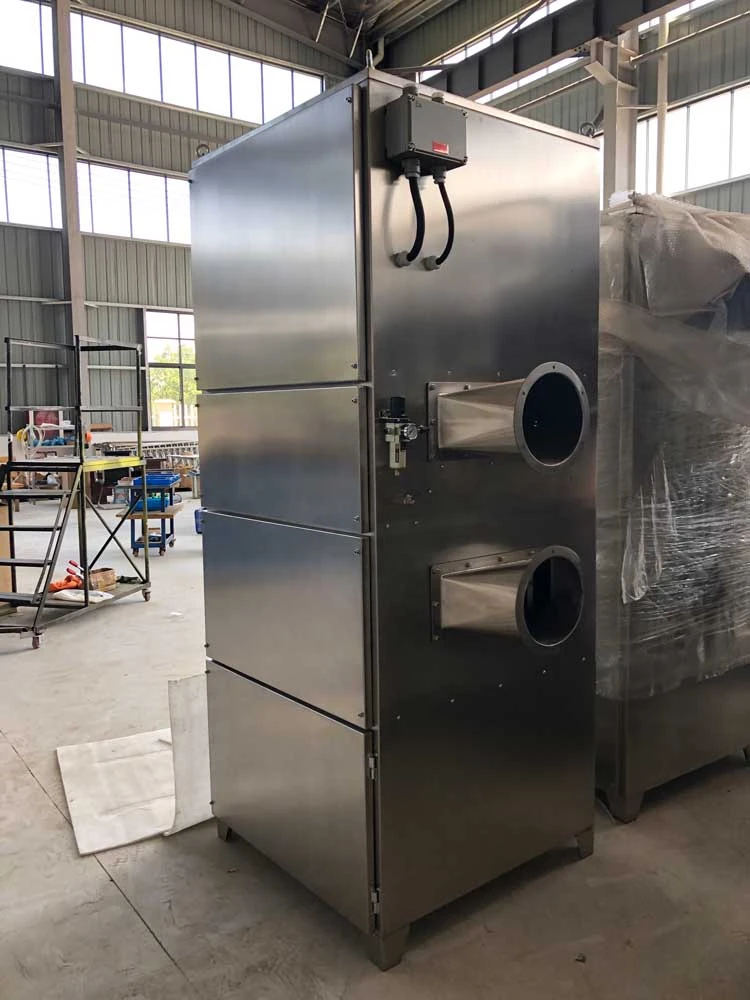

ACMAN Tablet Coating Machine Dust Collector, Film Coating Pharmaceutical Coater Dust Collection Unit
ACMAN had serve lots of pharmaceutical factory, and tablet film coating machine exhaust gas treatment is their tough problem, because some coating material is sticky, some just lime stone powder, some are enteric solubility, some are gastric solubility.

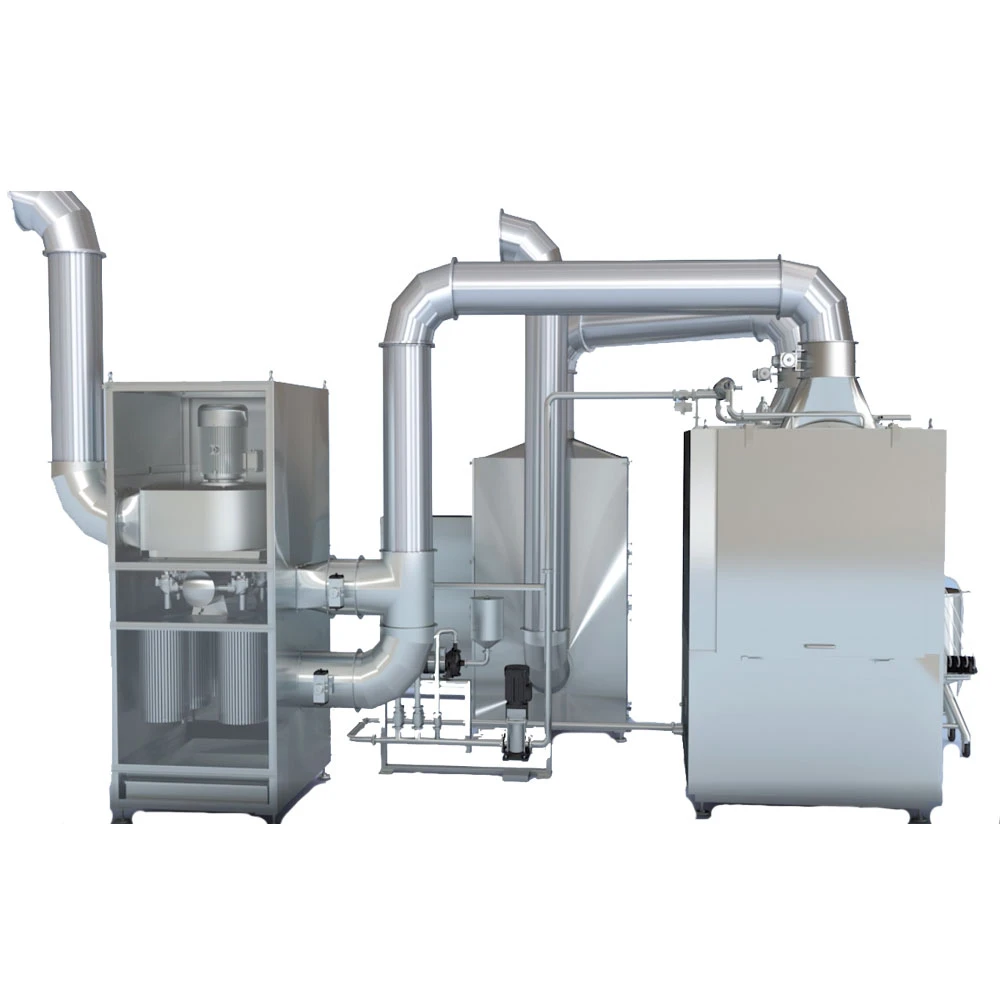

However, ACMAN has our own solution to solve the problem: 1; washable cartridge dust collector; 2:water scrubber+sinter-plate filter equipment.
However, ACMAN has our own solution to solve the problem: 1; washable cartridge dust collector; 2:water scrubber+sinter-plate filter equipment.
How Does the Dust Collector Working?

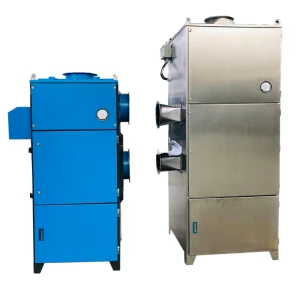

Dust Collection Unit Machine-Jet Type

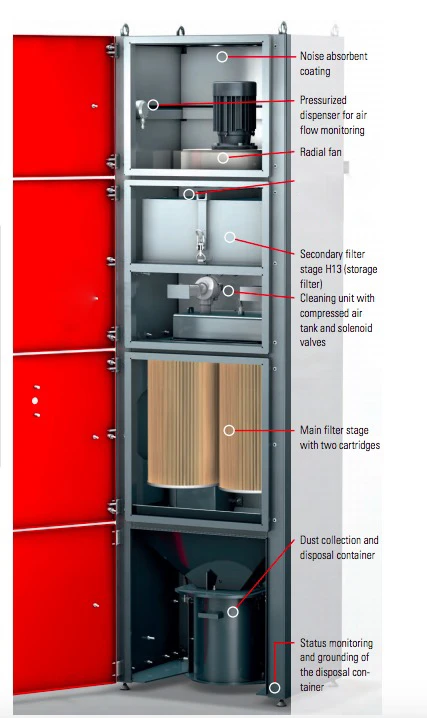

Compact design make the dust collection machine unit so small, it consist of blower, second filter(HEPA) available, pulse-jet cleaning system, high efficiency cartridge filters, dust bin and control cabinet.
Upper Setting: Big airflow and high pressure centrifugal fan. full pressure is about 2000Pa, ACMAN also could OEM super high pressure blower as you needs.
Pulse-jet Backflow System:This dust extractor could cleaning the filters automatically, it need 0.4-0.6mp compressed air source. Helping by the pulse controller and solenoid valves, the back flow air could clean the dust on the surface of the cartridge filters. Then the filter will renewable.
Cartridge Filter Part:The filter chooses high efficiency polyester cartridge type, it has big filtration area than normal one. PTFE coating/Anti-flammable filters are available.
Secondary Filter Part Available:HEPA filter always act as a second filtration part to protect the environment in case the leakage of the first filtration part.
Bottom Setting: Dust Bin/Dust Drawer Available on different working conditions.
Advantages
1: Compact design(fan+jet system+filters+dust bin) saving lots of space for factories;
2: Larger filter areas than bag filter dust collector, because of its pleated cartridge filters;
3: Filters could renewable, the pulse-jet system keep the filters cleaning in a regular time;
4: Various of filter types, suitable for different working conditions;
5: Easy for maintenance: the filters are easy to change and only should remove dust regularly;
6: Less power consumptions: the centrifugal fan's design could provide high pressure and big airflow, the motor is E2 efficiency.
7: Air consumption is low: the compressed air consumption for pulse-jet is lower than baghouse;
8: Wide applications: it can catch fine dust in most of industrials, and removes dust from pulverizing and grinding, crushing, sanding, powder injection and sealing, severing and cutting, stone and metal work, cutting work, substrate work and welding work... but moisture/sticky dust;
9: The efficiency is about F9 grade, if have HEPA secondary filtration, the efficiency is about H13;
10: Lower Noise, with sound proof sponge and centrifugal fan isolation box;
11: Material: 2mm SS400 carbon steel with powder coating or stainless steel SUS304.

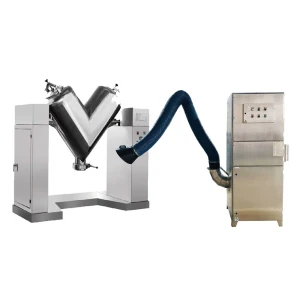

Applications
Parameter
|
Model
(B) |
Airflow
(m³/h) |
Filter Area
(m3) |
Full Pressure
(Pa) |
Power (kw) | Air Source (Mp) | Noise (Db) |
COT-30B-J | 2664-3405 | 30 | 2700-2200 | 4 | 0.4-0.6 | 73 |
COT-40B-J | 3786-4527 | 36 | 2700-2200 | 5.5 | 0.4-0.6 | 75 |
|
COT-60B-J |
4973-6457 |
48 |
2700-2200 |
7.5 | 0.4-0.6 | 75 |
|
COT-80B-J |
7081-8489 |
60 |
2700-2200 |
11 | 0.4-0.6 | 78 |

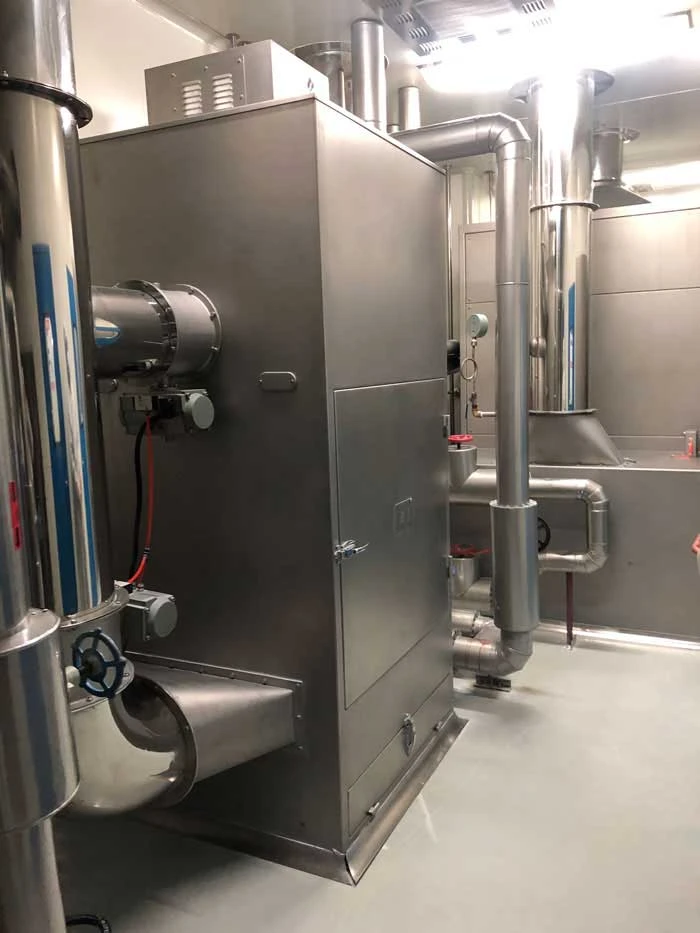

Customer Cases
