Dust Scrubber System for Milk Power Collection, Sticky Dust Collection Solution for Food Industry
- Model
- ZH-2
Review
Description
Dust Scrubber System for Milk Power Collation, Sticky Dust Collection Solution for Food Industry
Sticky Power- Milk Powder Collection
"How to solve this task?" Our Israel customer asked,
we recommend our ACMAN wet scrubber. now, they had installed two wet scrubbers in the factory, and also they are working brilliantly.

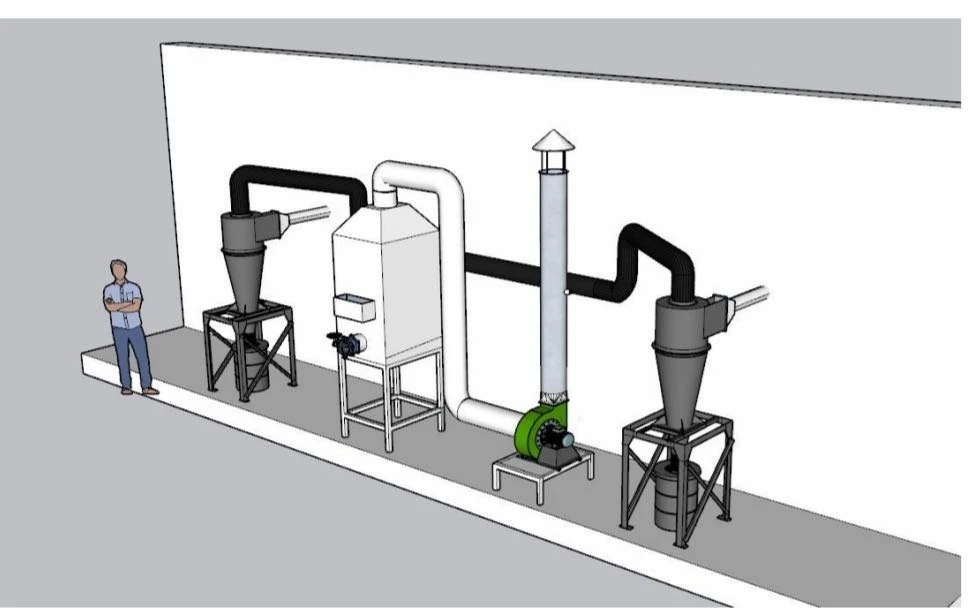

Solution Confirm Steps

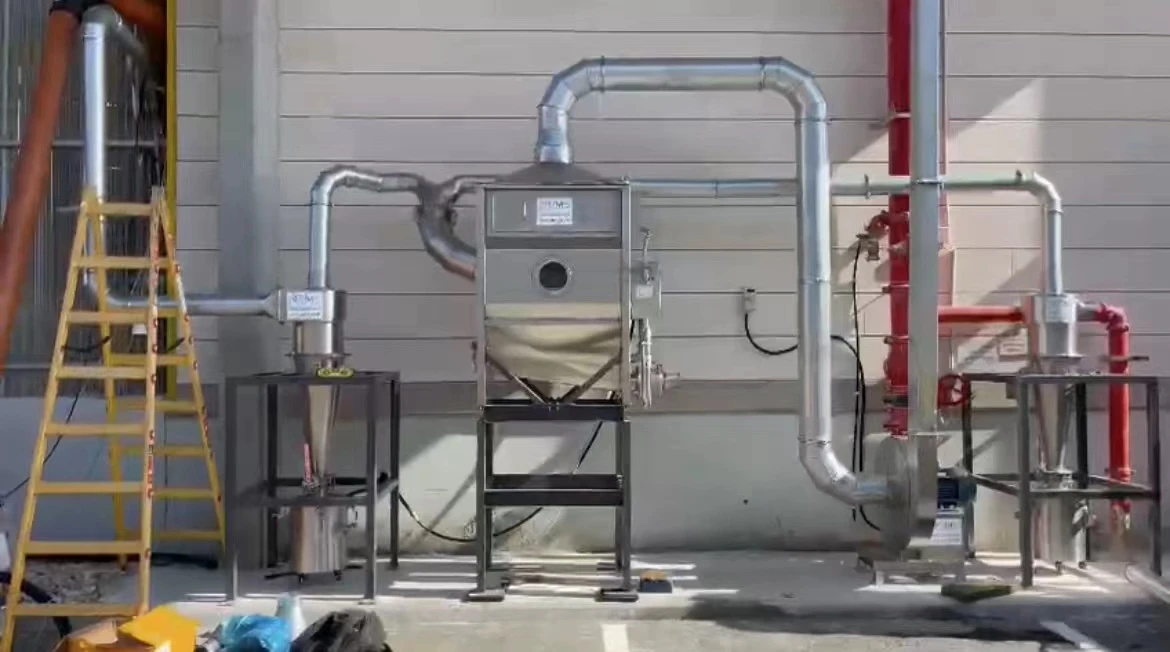

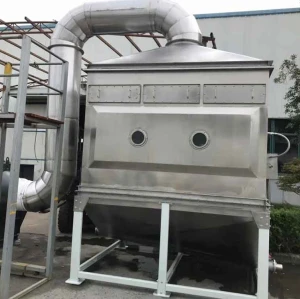

Installation Effective Pictures No1
Installed in our customer's factory

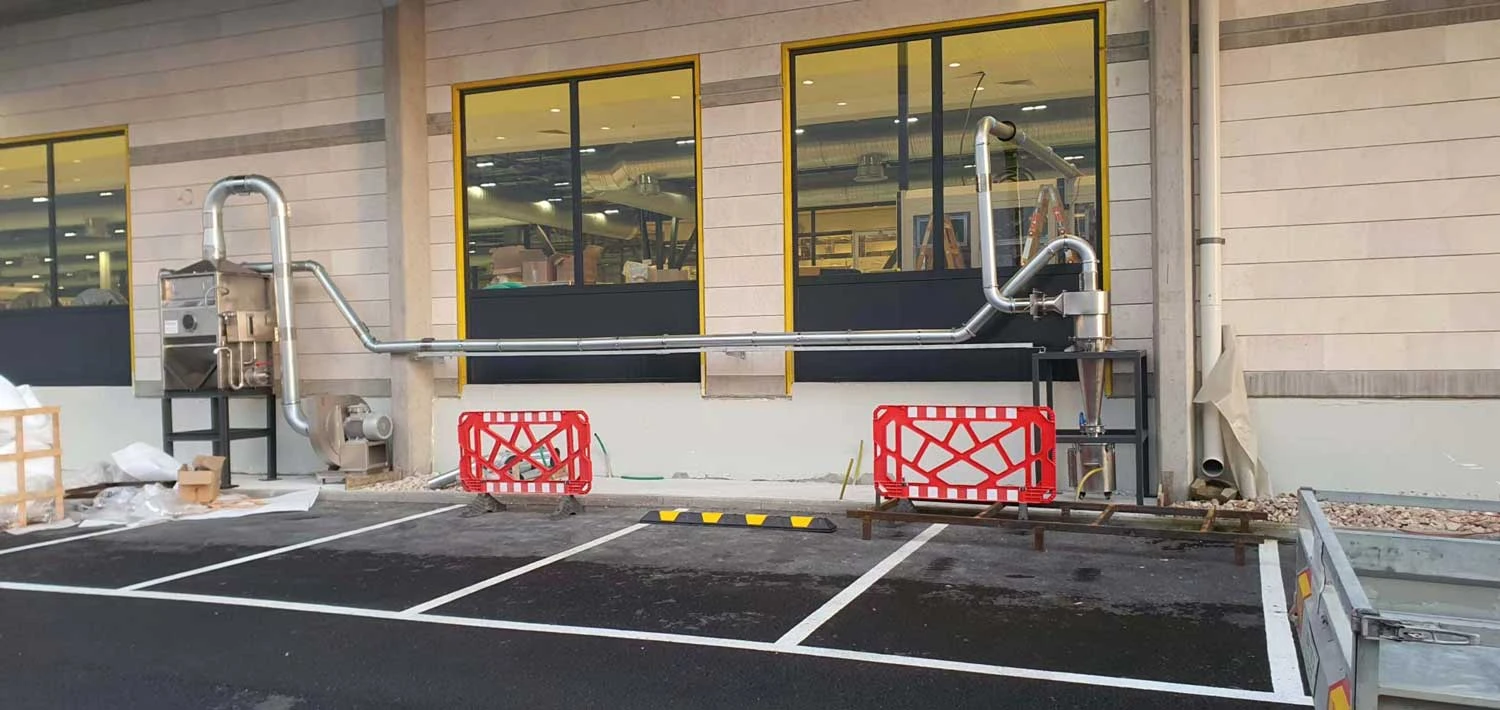

Installation Effective Pictures No2
Installed in our customer's factory

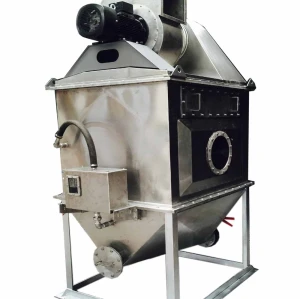

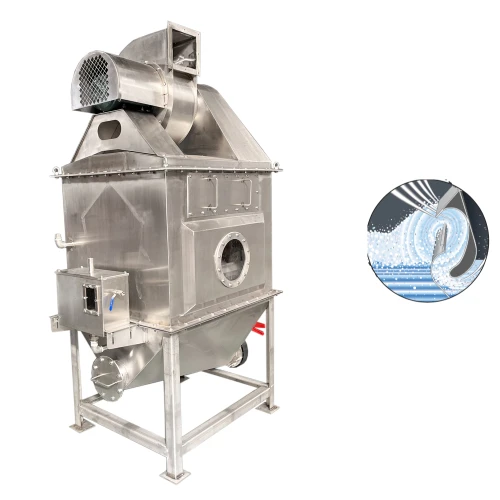

ACMAN Wet Scrubber Introduction
Safe Wet Dust Collector
wet dust collector is a specialist at capturing combustible and hazardous dusts from the special plant air:
The main power of this wet scrubber dust collector is the centrifugal fan. We also called it "wet centrifugal scrubber".
Do not need the pump and spray nozzles so that it do not need to concern the block of the water flow parts.

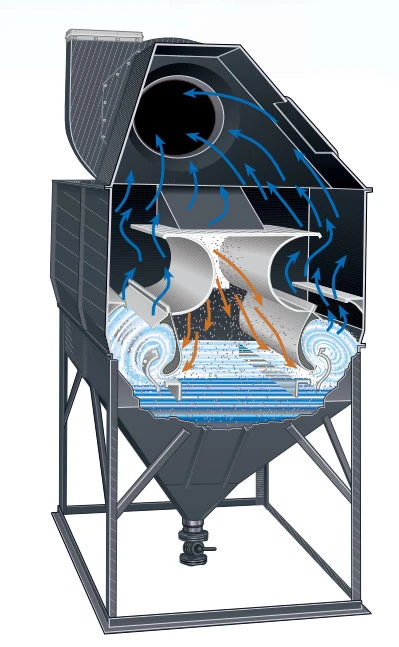

There is a water "throat" at the main body of the wet scrubber, the raw gas come into the machine. It will have two cascades to wash the contaminated air.
then the dust will settle down into the bottom of the wet scrubber machine.
Clean air will be extracted after mist eliminators filtration.
It also have water replenish tank to add water if it have some evaporation.
Application:
Flammable/explosive dust; poisonous dust; moisture dust; sticky dust, wear dust, Dusts with sparks; high-temperature dust...
Advantage:
1: Safe equipment for combustible or explosive dust;
2: High Efficiency: 99% @3um dusts;
3: Low maintenance cost: do not have pump;
4: Low Water Usage: only evaporation could cause the water reduce;
5: Capture-at-source for clean air;
6: Automatic water feeding device, easy in maintenance;
7: Low running resistance, low power consumption...
Disadvantage:
1: Need to dispose the waste water...

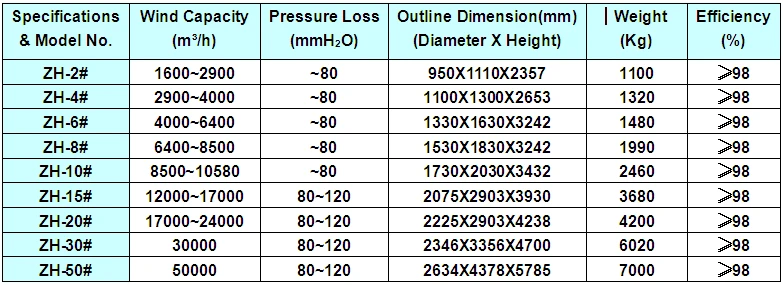

Technical Data
