Silo Bin Vents, Flanged Round Dust Collector-Pulse Jet Filter, Bin Vent Filter for Bins Silos and Hopper
- Model
- Silotop-R800
Review
Description
Silo Bin Vents, Flanged Round Dust Collector-Pulse Jet Filter, Bin Vent Filter for Bins Silos and Hopper
ACMAN Silo Dust Collectors are designed to applied in bulk and solids industries such as Powder Ready-Mix, Cement Bin Venting, Aggregates Batch and Fill and Mining Conveyer, Painting Powder Top Load and so on.

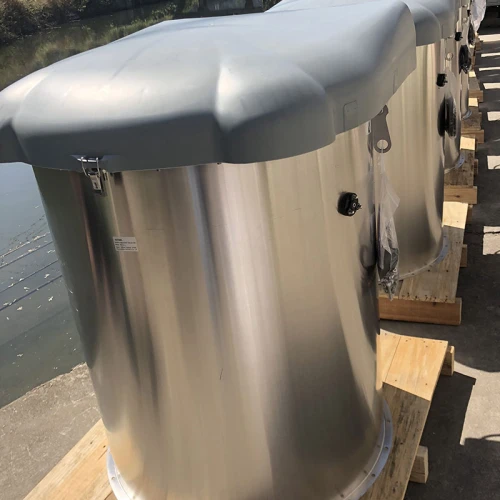

ACMAN SiloTop R800 Bin Venter

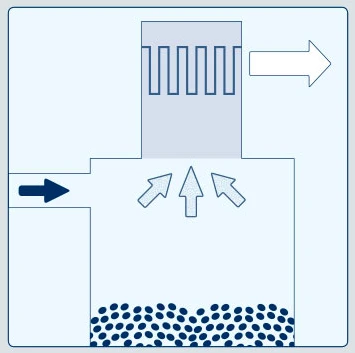

When material and convey air discharges into a silo, the air must be allowed to escape. For dusty material that air must be filtered before venting to atmosphere. That’s where a ACMAN Silo Venter with Pulse Jet Filter comes in.
1:Hopper type is for product collection;

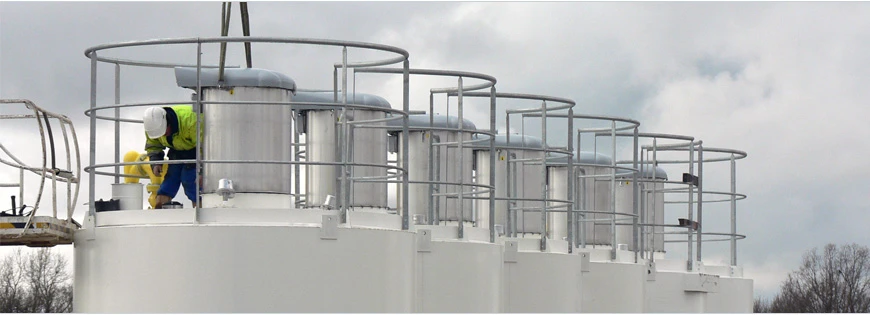

2:Bin-Mount type which can be installed on top of tanks or silos for air/pressure relief;
3: Dust Control for emission airborne dust.

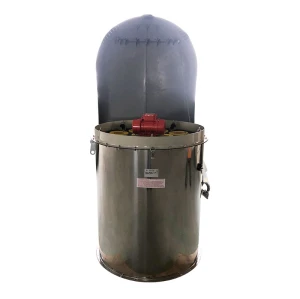

This service-friendly bin vent filter has a pulse jet cleaning system that can be used for a wide range of bulk solids materials.

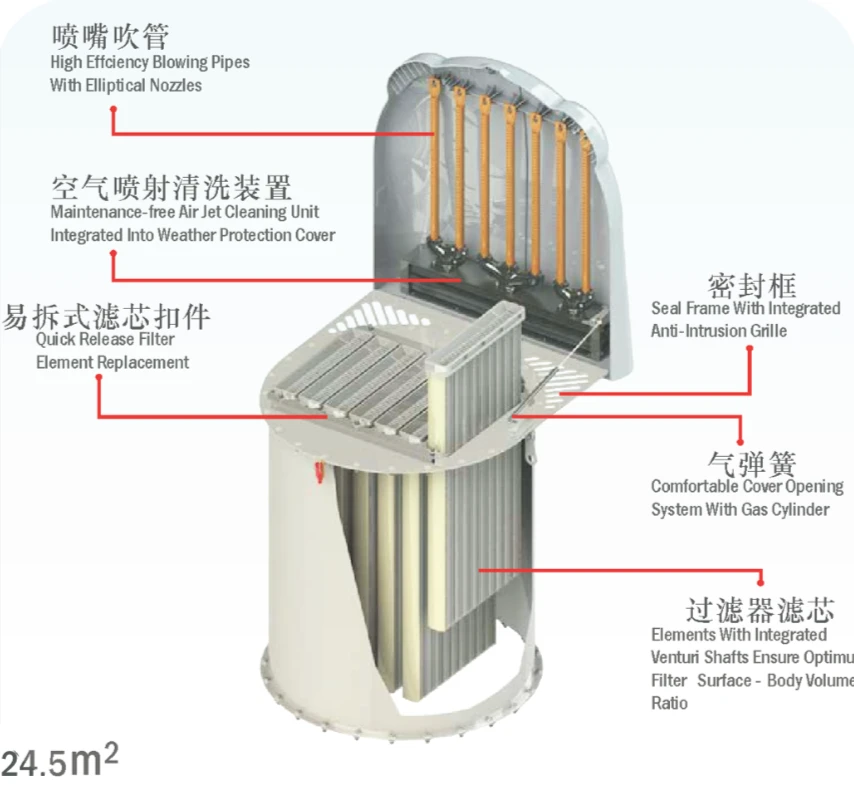

Details for R800 SiloTop Dust Collector with Pulse Jet
1: Stainless Steel Body: Outdoor Installation Design: Anti-rain and Robust Protection;
2: High Quality Filter Media: Polypropylene Filter Material-99.9%@1um Efficiency;
3: Big Filter Area: 7 pcs 425*925mm filter provide 24.5m2 filter area;

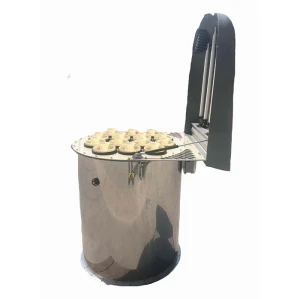

4: Push In Filter Installation: Easy installation and maintenance; Maintenance height: 3.8ft(1150mm);

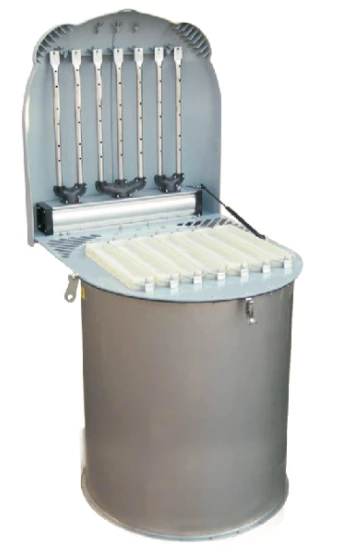

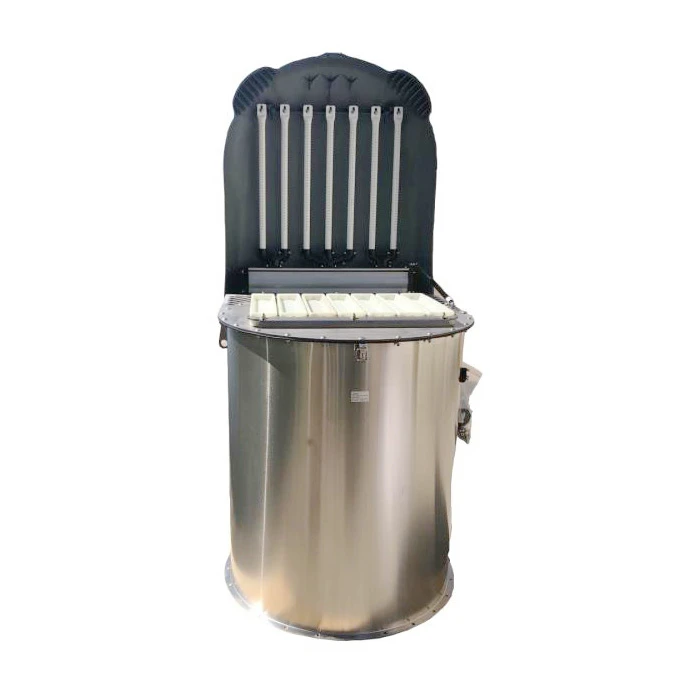

5: Easy Opening with hinged Cover: Durable and long lifetime anti-rain cover.

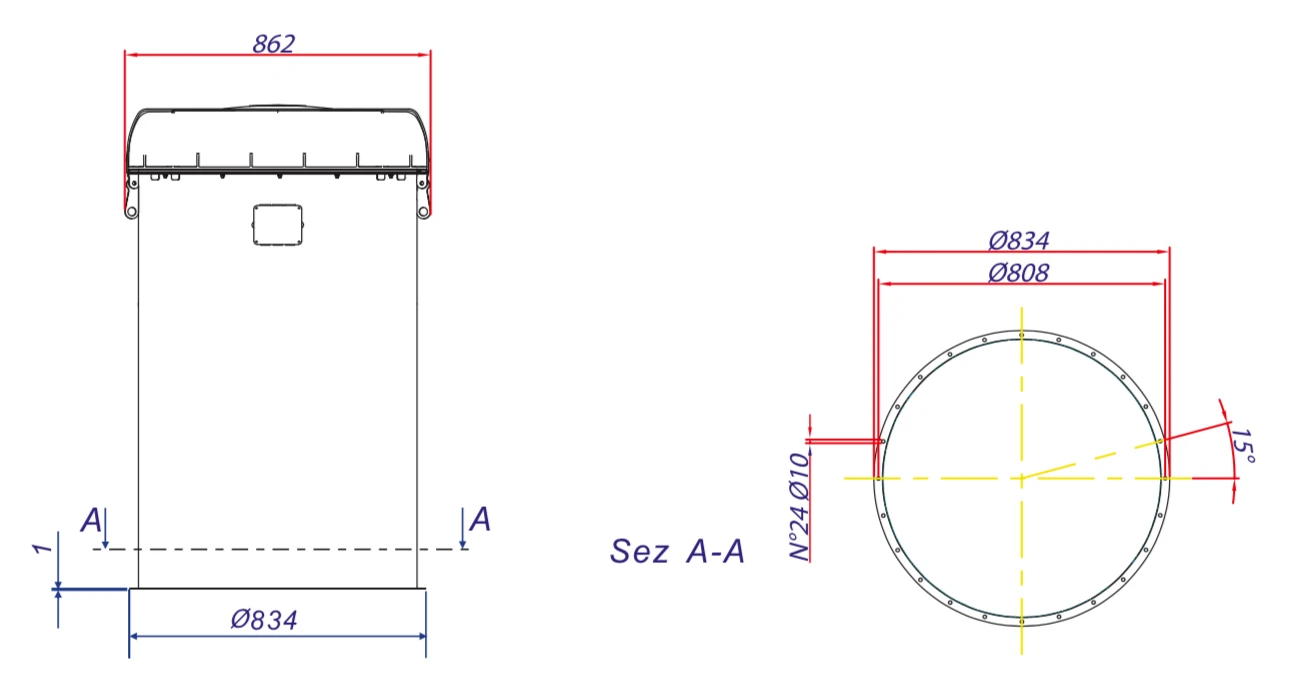

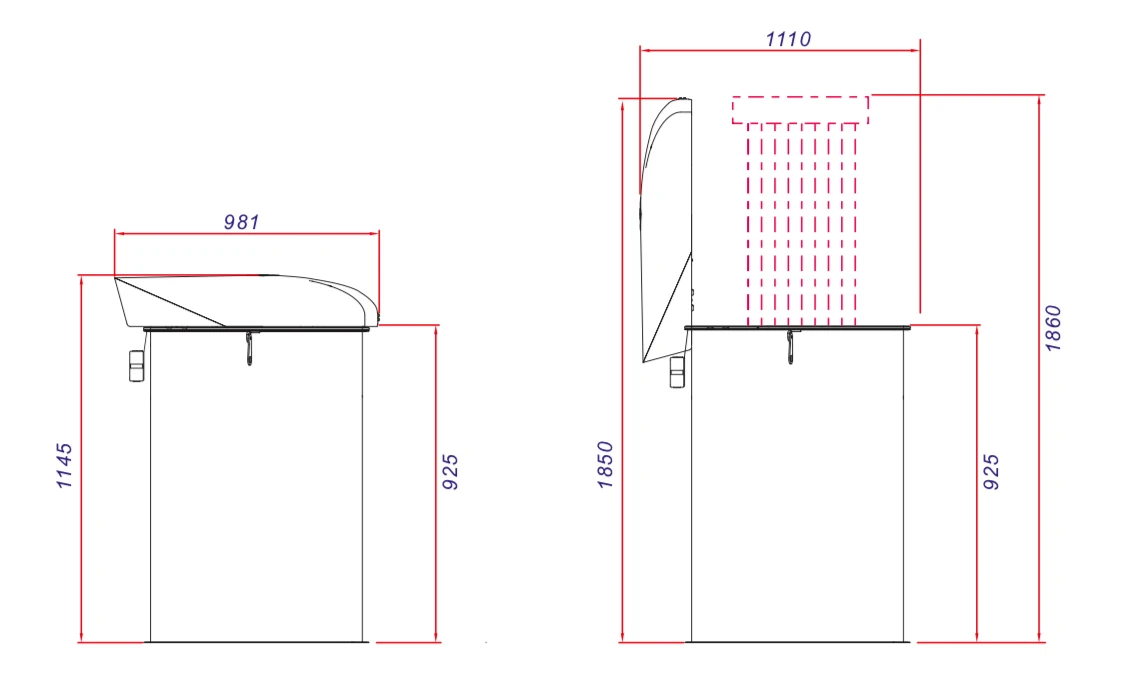

Technical Data
|
Model
|
Body Diameter
|
Filter Area
|
Instal Height
|
Open Height | Weight |
|
R800
|
800mm
31.5 inch |
24.5m2
150sqft |
1145m2
43.3inch |
1860mm 72.8inch | 79kg 174lbs |
Filter Information

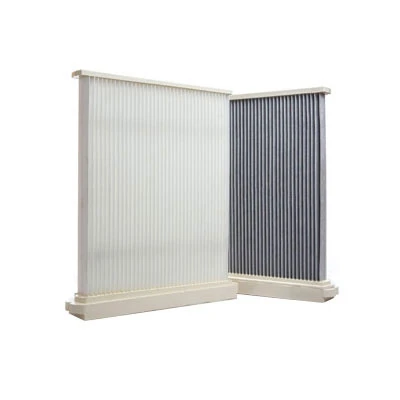

Filter Elements for R800 Silo Vent Filter
1: Size: 425*925mm;
2: Filter Area: 3.5m2/pcs*7
3: Filter Material: Polypropylene Filter;
4: Efficiency: 99.9%@1um
Installation
