WSO Mist Collectors-Donaldson Torit Type WSO mist collector for Mist Water, Smoke and Oil, Oil Mist Collector for CNC Machines

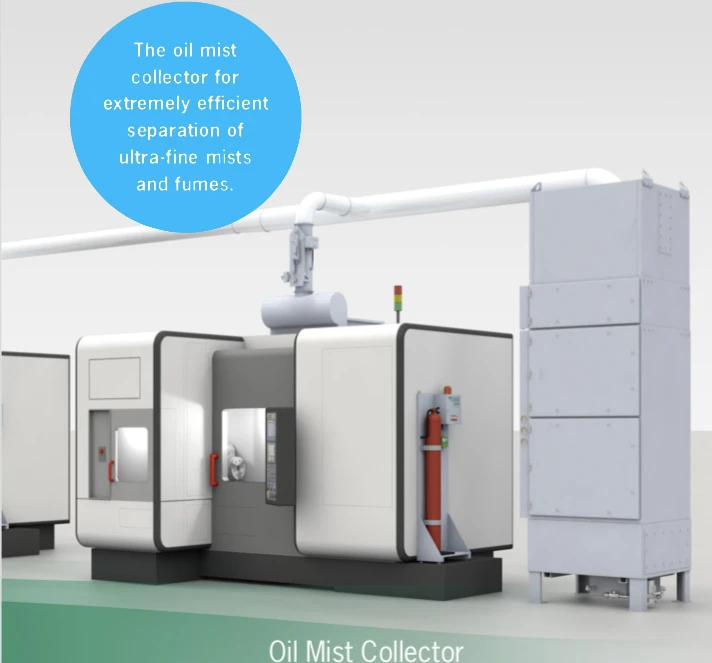

How to Process Oil Mist in CNC Machines?
ACMAN Mist Collector is the Best Choice!

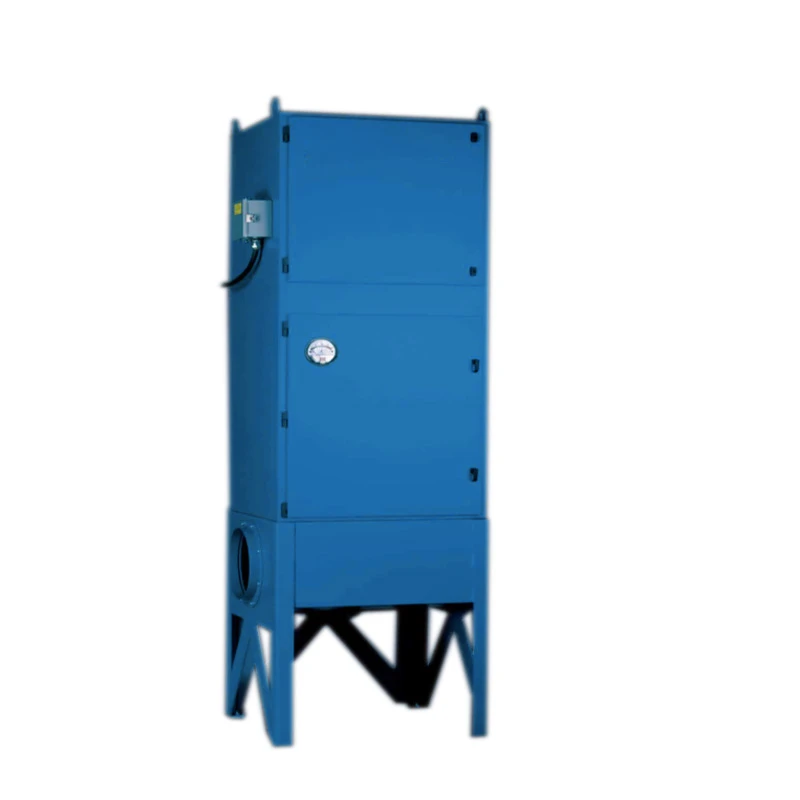

The versatile Donaldson Type Torit WSO Mist Collector provides three filter solutions for water-soluble coolant, straight oil, and the most challenging, oily smoke. The WSO uses revolutionary Synteq XP Media Technology engineered for superior draining, resulting in lower pressure drop and longer filter life.
The WSO can be modified with a simple filter change, leading to leaner operation, cost savings and cleaner plant air.

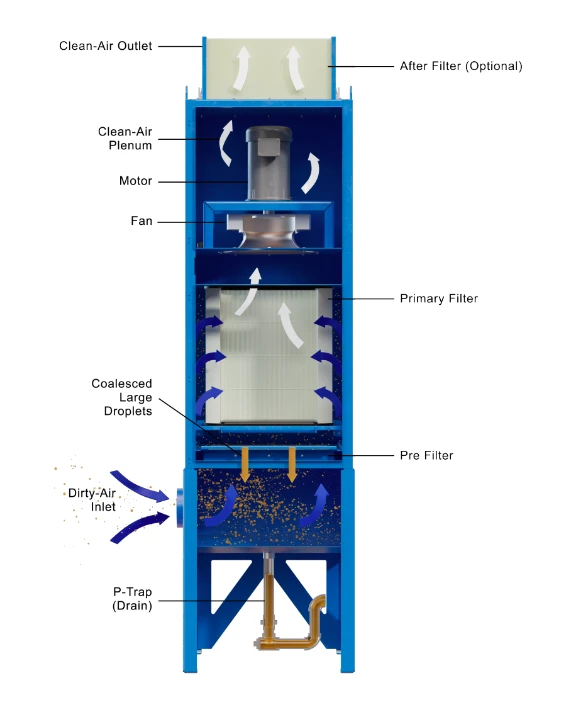

3 Stages Filter Choosing
3rd Stage: Final Filter (Optional)
DOP
95% efficient on .3 micron mist and smoke
HEPA
99.97% efficient on .3 micron mist and smoke
2nd Stage: Primary Filter (Select One)
1): Synteq XP - W
For mist from water-soluble coolant
Economical, fast draining, for heavy water-based liquid load
2): Synteq XP - S
For smoke from machining
Highest efficiency for challenging applications
3): Synteq XP - O
For mist from straight oil machining
Efficiency designed for small oil aerosols
1st Stage: Prefilter Options (Select One)
1): Metal Screen
2): For heavier dust/grit from wet grinding
3): Metal Mesh
4): For most water-soluble mist
5): Polypropylene Mesh
6): For most straight oil mist
7): High Efficiency 1st Stage
8): For oily smoke

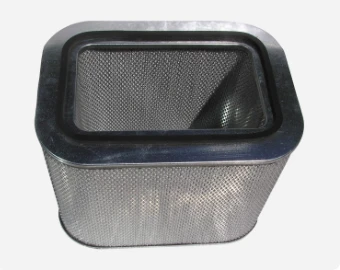

100% Authentic Donaldson Filter
Up to 45% more filter surface area than pocket filters and round cartridges
Best fit in rectangular cabinet
Lower pressure drop
Longer filter life

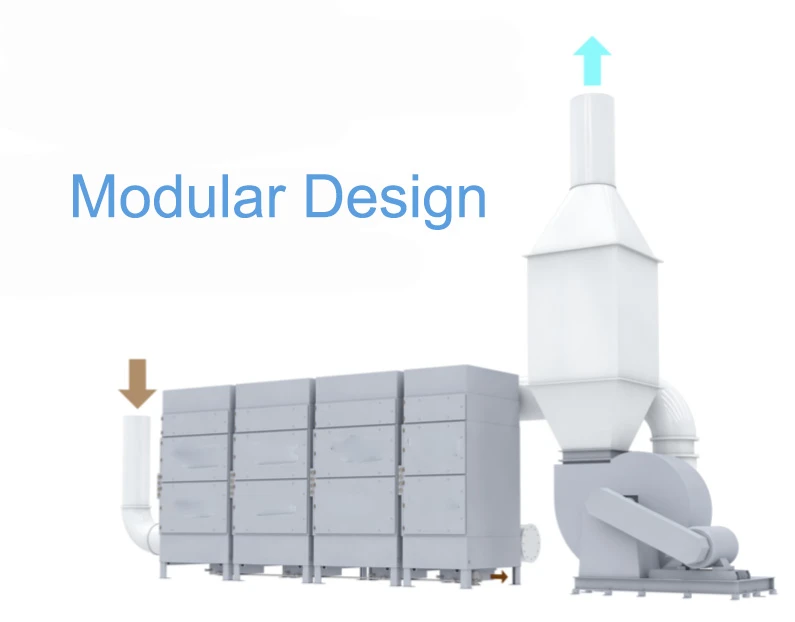

Modular Design
Technical Data
|
Model
|
Airflow m3/h | Filter Qty | Filter Area m2 | Power kw | Weight | Size mm |
|||||
Water | Oil | Fume | L | D | H(1) | H(2) | |||||
WSO10 | 765 | 1 | 4.6 | 4.1 | 0 | 0.75-0.55 | 82 | 483 | 503 | 843 | 927 |
WSO15 | 1445 | 1 | 11.6 | 10.1 | 7.9 | 1.1 | 114 | 610 | 579 | 1047 | 1130 |
WSO20 | 2090 | 1 | 15.5 | 13.6 | 10.5 | 2.2 | 130 | 711 | 630 | 1247 | 1539 |
WSO25 -1 | 3145 | 1 | 26.6 | 22.8 | 17.2 | 2.2 | 341 | 762 | 770 | 2677 | 2903 |
|
WSO25
-2 |
6290 | 2 | 53.2 | 44.6 | 36.3 | 455 | 1544 | 770 | 2223 |
2733
|
|
|
WSO25
-3 |
9435 | 3 | 79.8 | 68.3 | 54.4 | 605 | 2306 | 770 | 2223 |
2733
|
|

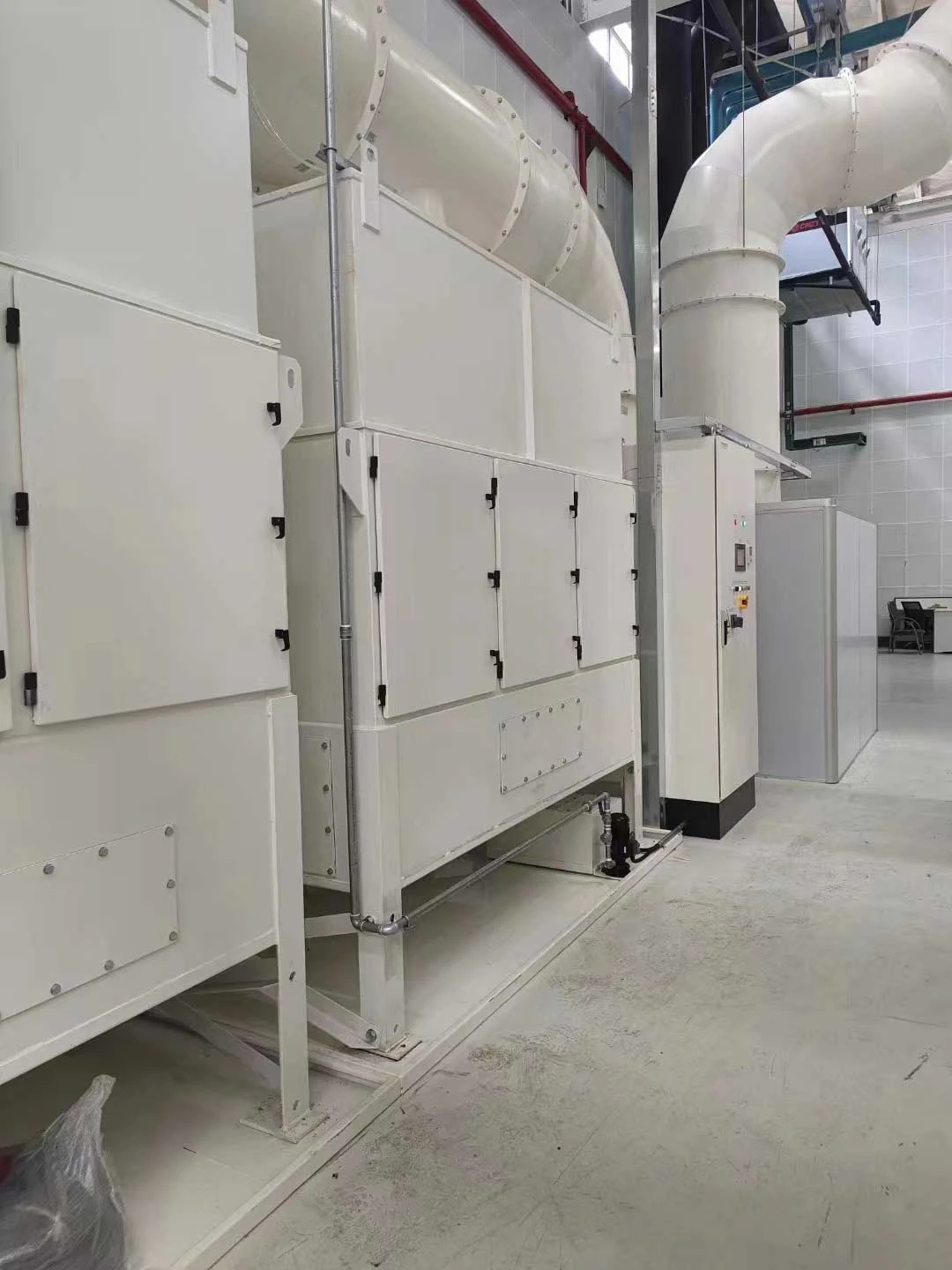

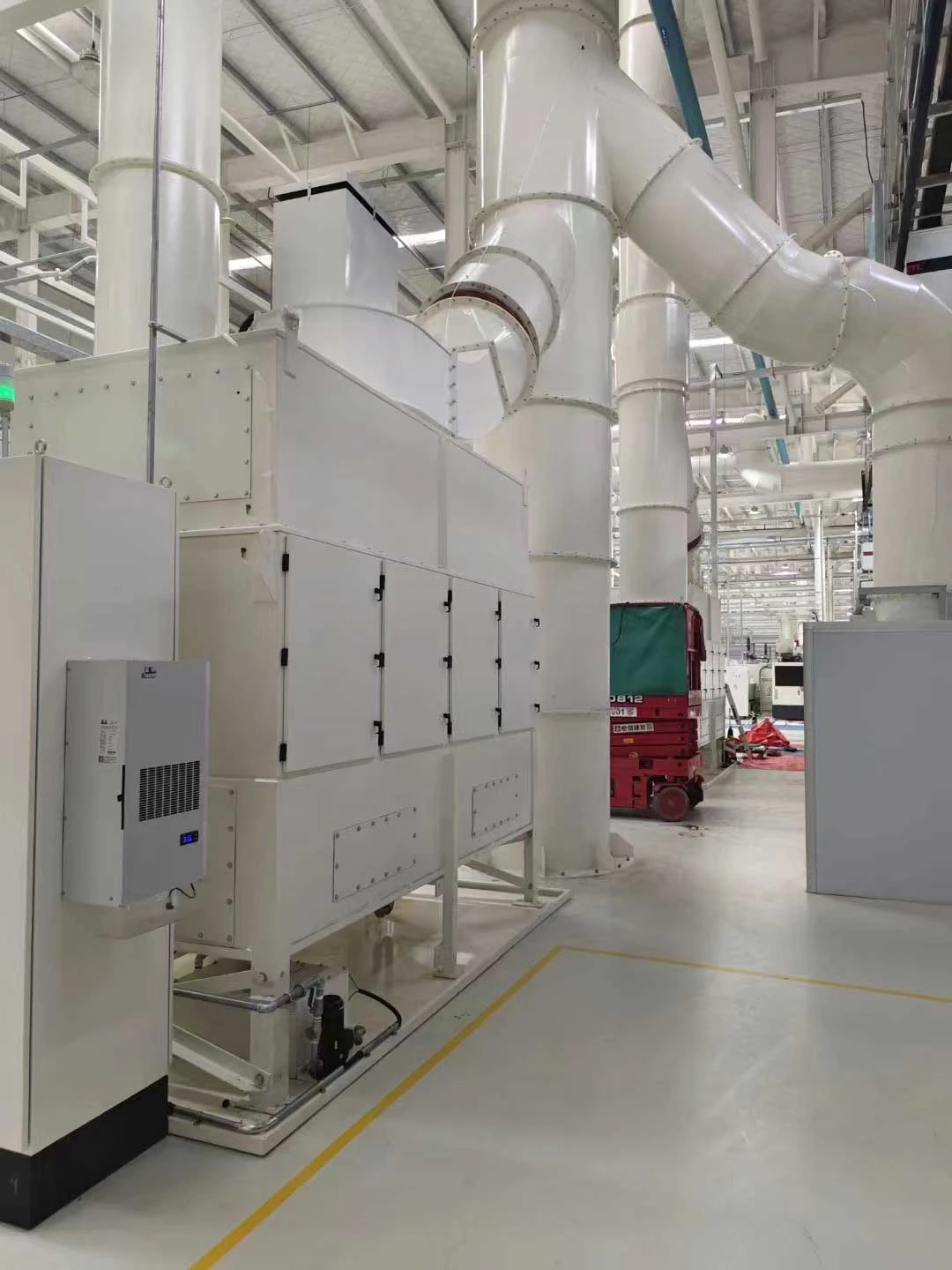

Installation Pictures
