High Capacity F8-H13 V-Bank HEPA Air Filter, High Efficiency W Type HEPA Box for Ventilation and AHU, V Cell Air Filter
Pressure steady in the system. save energy!!

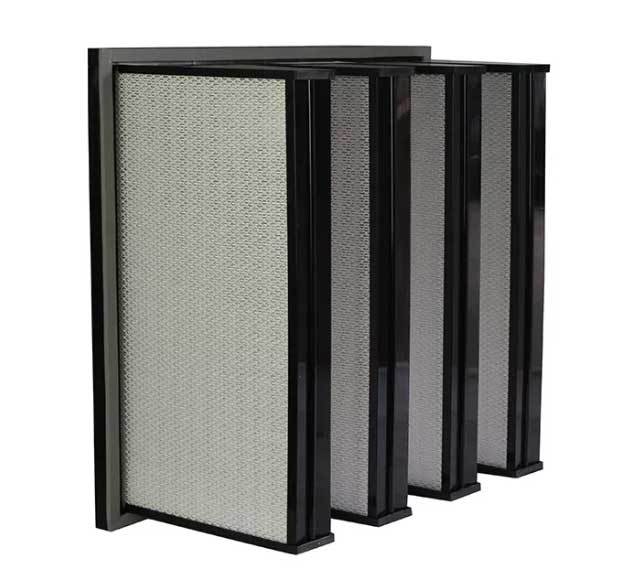

The V-Bank/W-type filter is composed of multiple V-types with thinner filter paper without partitions, which effectively expands the filtering area and reduces the structural resistance of the filter. The air volume is large, the resistance is small, and the service life is long.

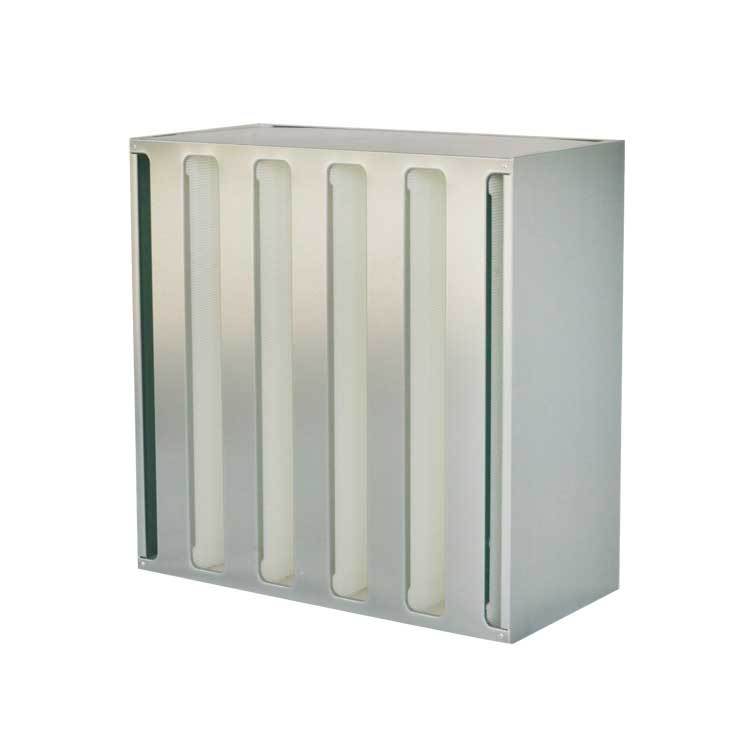

1: Box type and W type
2: Large filter area, suitable for large air volume
3: All grades of F7-H14 are optional
Technical Data
|
Efficiency
|
M5,M6,F7,F8,F9(EN779)
E10, E11, E12,H13,H14(EN1822) |
|
Frame Material
|
ABS/Galvanized Steel/Aluminium Alloy/Stainless Steel
|
|
Filter Media
|
Glass fiber filter paper
|
Spacer Substance | Hot Melt Adhesive |
Sealing | PU Seal Strip |
|
Temperature
|
80°C
|
Relative Humidity | Max 80%RH |
Application | Cleanroom HVAC AHU Filtration Parts, Pharmaceutical Company ,Hospital, Electronic Company... |
Advantages
Big dust load capacity, eliminate the replacement period, save money!!
1:Small size and compact structure
2:There are two forms of folding net and sub-frame
3: Generally, it is the initial effect, and it can be used for the intermediate effect.
Installation Size and Pressure
|
|
Size
(mm) |
Airflow (m3) |
Initial Pressure(Pa)
|
||||
F7@0.4um 80%≤E<90% | F8@0.4um 90%≤E<95% | E10@MPPS 85%≤E <95% | E12@MPPS 99.5%≤E <99.95% | H13@MPPS 99.95%≤E <99.995% | |||
|
5VWGB592.592-292
|
592x592x292
|
3000 |
|
70 |
160 | ||
|
4VWGB592.592-292
|
592x592x292
|
2400 |
|||||
|
4VWGB287.592-292
|
287x592x292
|
1200 |
|||||
6VXWGB610.610-292 | 610x610x292 | 3400 | |||||
5VXWGB610.610-292 | 610x610x292 | 3000 | |||||
4VXWGB610.610-292 | 610x610x292 | 2400 | |||||
4VXWGB305.610-292 | 305x610x292 | 1200 | |||||
*Counting Efficiency
Testing
Factory Cleanroom
