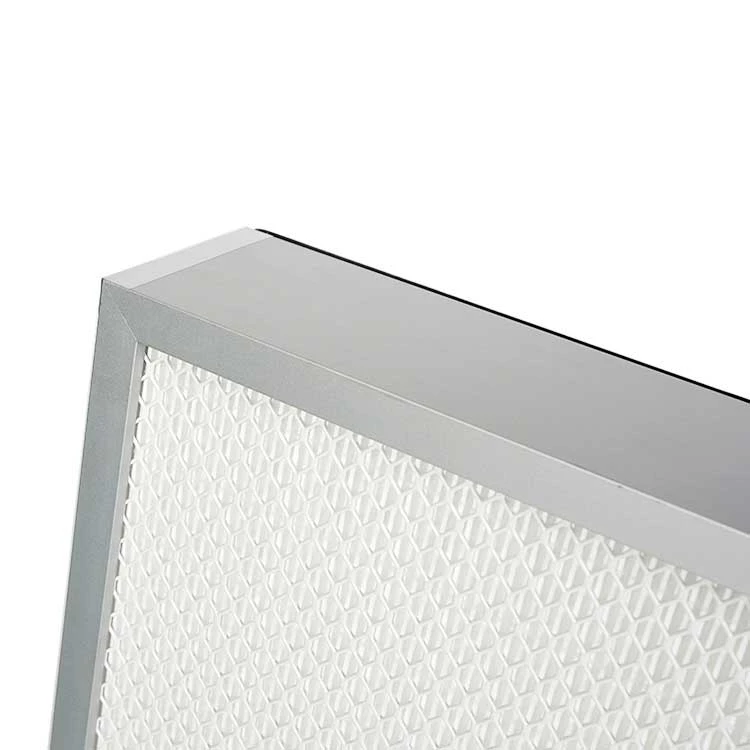

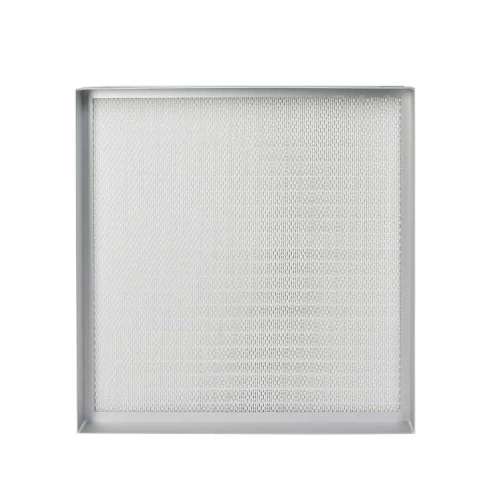

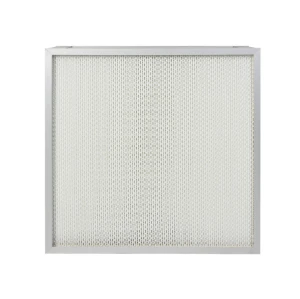

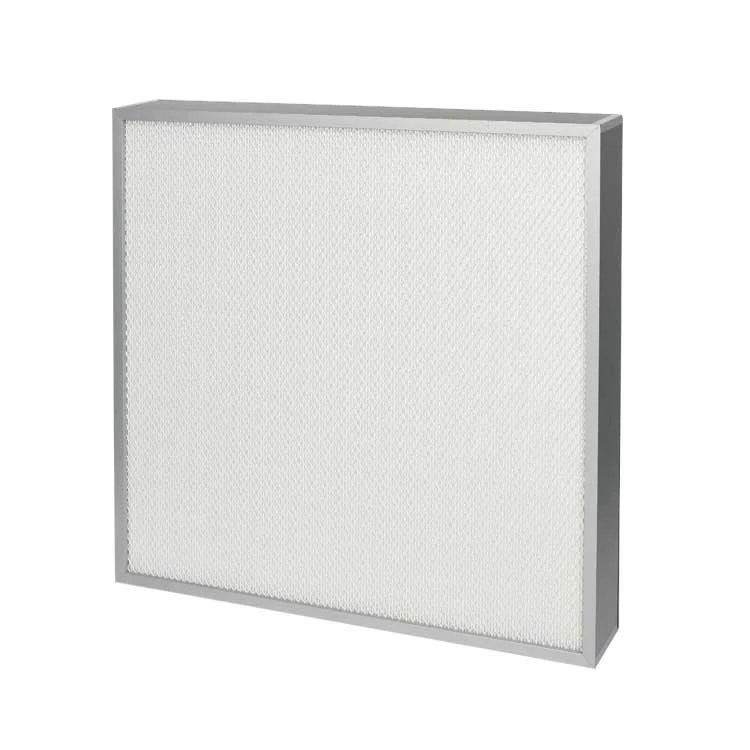

U15 U16 U17 ULPA Filters For Sale, Filtro ulpa Purifier Mini-pleat Filter Price
Pressure steady in the system. save energy!!
Mainly used at the end of the clean room, or local purification equipment, to filter out 0.1μm particles, all ultra-efficient filters require scanning leak detection and integrity testing.
Technical Data
|
Efficiency
|
H14(EN1822) |
|
Frame Material
|
Aluminium Alloy
|
|
Filter Media
|
High-efficiency Glass Fiber Filter Paper
|
Spacer Substance | Hot Melt Adhesive |
Sealing | PU Foam Seal/CR Strip Seal |
|
Temperature
|
80°C
|
Relative Humidity | Max 80-100%RH |
Application | Cleanroom HVAC AHU Filtration Parts, Pharmaceutical Company ,Hospital, Electronic Company... |
Advantages
Big dust load capacity, eliminate the replacement period, save money!!
1: Air supply at the end of the clean room or purification equipment of ISO 5 and above
2: Filter paper grade U15-U17
3: Requires pre-H-level pre-filtering
Installation Size and Pressure
|
|
Size
(mm) |
Airflow (m3) | U15 Initial Pressure (Pa) | Final Pressure (Pa) | Efficiency (MPPS) |
|
UWGB610.610-70 |
610×610×70
|
600 |
150 |
450 | ≥99.9995% |
|
UWGB1170.570-70
|
1170×570×70
|
1100 |
|||
|
UWGB1170.870-70
|
1170×870×70
|
1700 |
|||
UWGB1170.1170-70 | 1170×1170×70 | 2200 | |||
UWGB610.610-90 | 610×610×90 | 750 | |||
UWGB1170.570-90 | 1170×570×90 | 1300 | |||
UWGB1170.870-90 | 1170×870×90 | 1950 | |||
UWGB1170.1170-90 | 1170×1170×90 | 2600 |
*Counting Efficiency

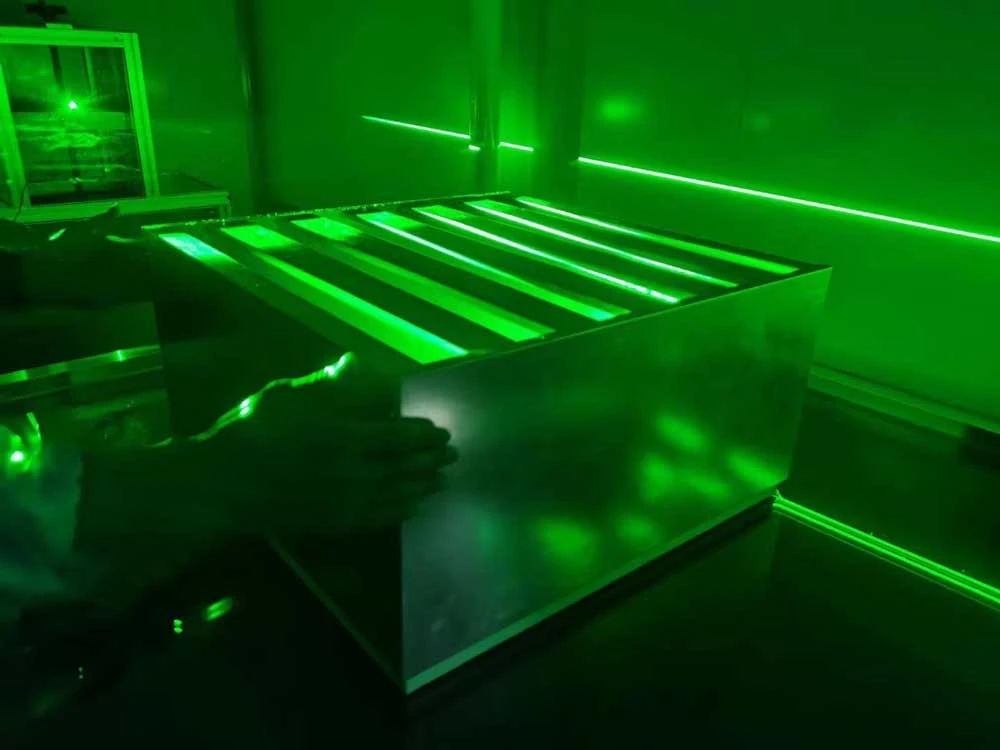

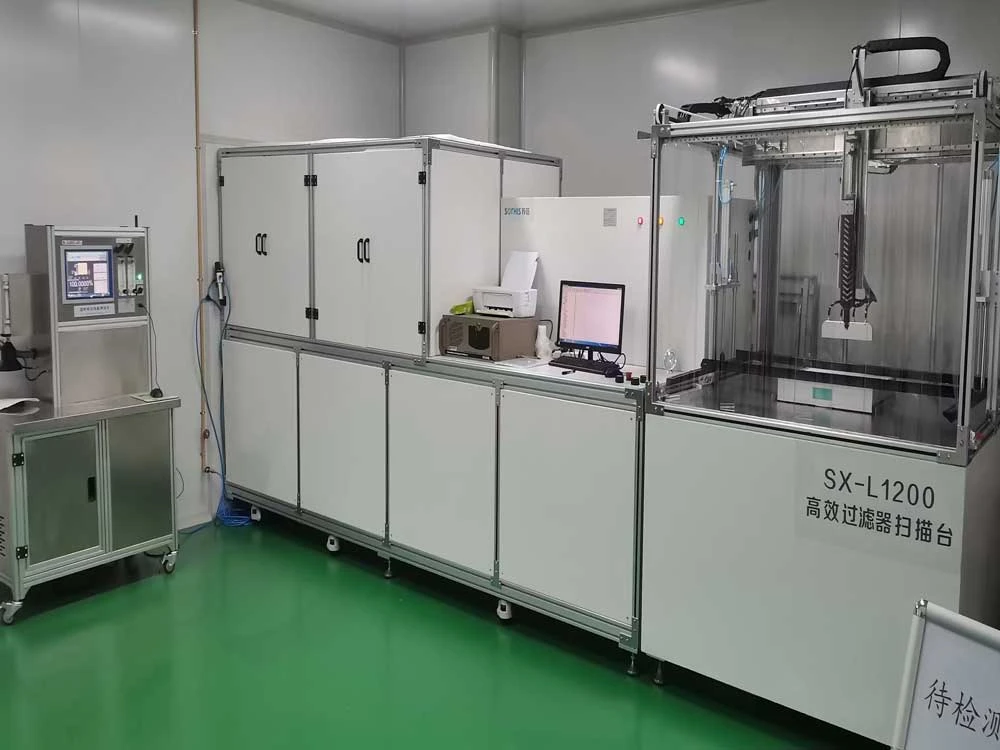

Testing

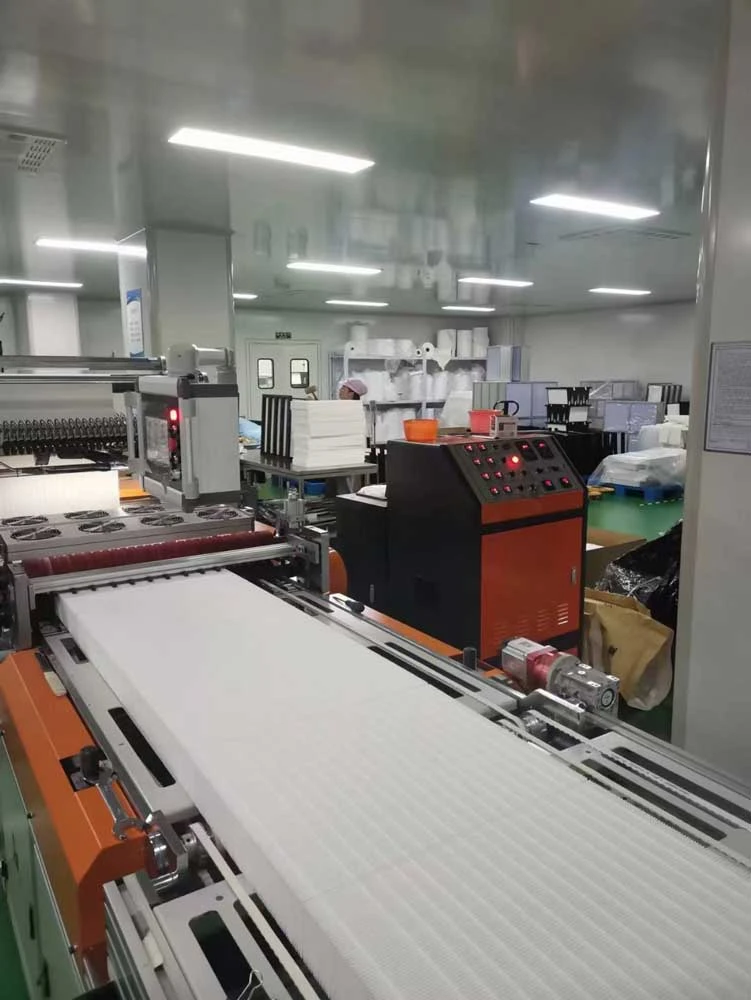

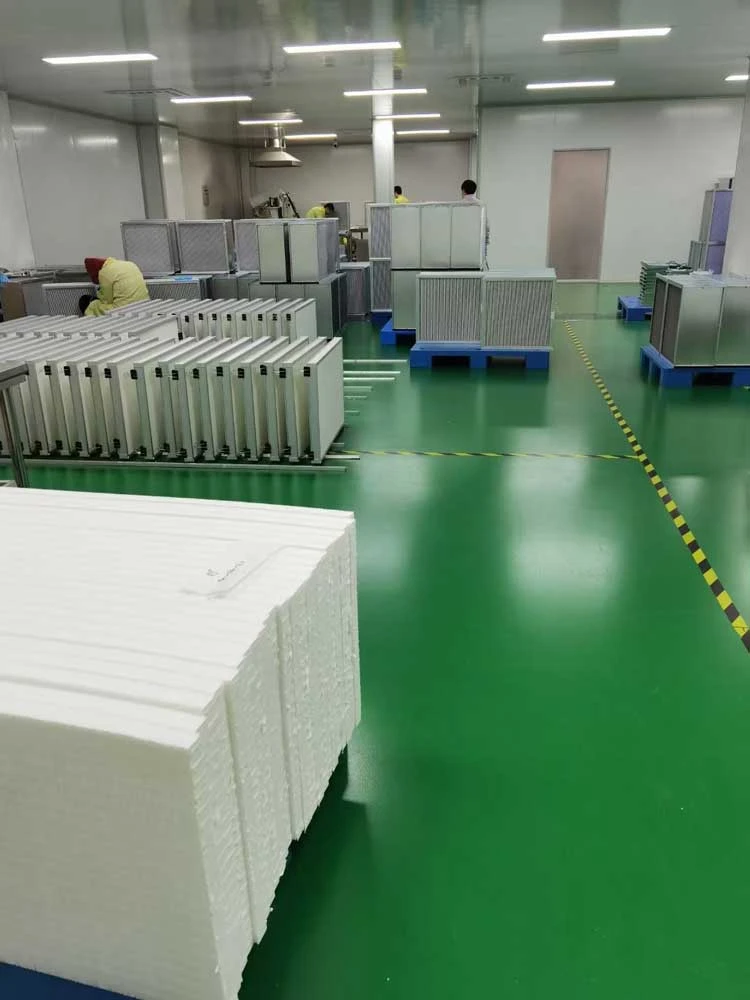

Factory Clean Room
