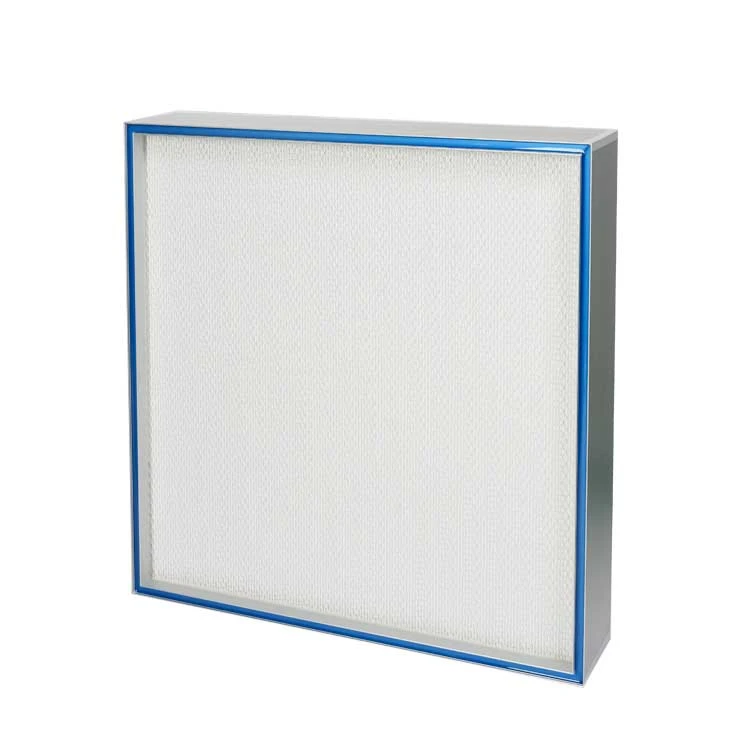

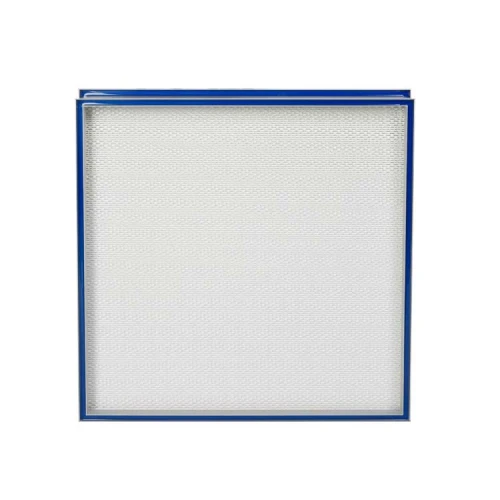

Mini-pleat Ultra Low Penetration Air Filter, H14 Liquid Channel Close-Pleat HEPA Filter
Mini-pleat Ultra Low Penetration Air Filter,  H14 Liquid Channel Close-Pleat HEPA Filter
Mini-pleat Ultra Low Penetration Air Filter,  H14 Liquid Channel Close-Pleat HEPA Filter
Mini-pleat Ultra Low Penetration Air Filter,  H14 Liquid Channel Close-Pleat HEPA Filter
Model
H14 HEPA

Review

Description

MIni-pleat Ultra Low Penetration Air Filter,  H14 Liquid Channel Close-Pleat HEPA Filter
Pressure steady in the system. save energy!!

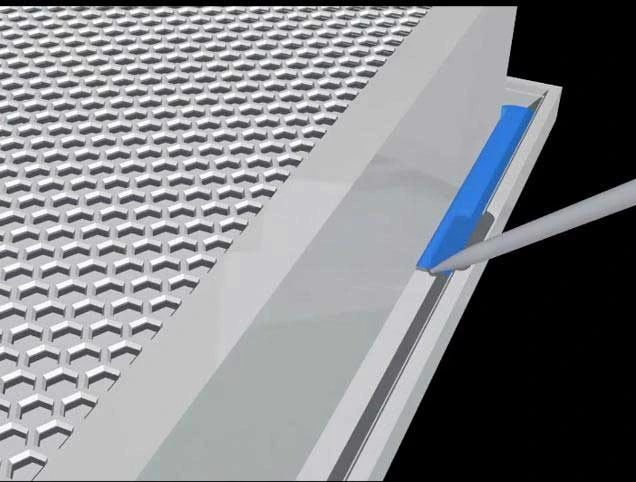

The liquid channel sealing without partition high-efficiency filter is filled with polyurethane two-component gel and used as the installation seal. This sealing form has high reliability and no leakage, and is suitable for on-site DOP dust and leak detection.
HEPA Liquid Channel Sealing /Mini Pleat

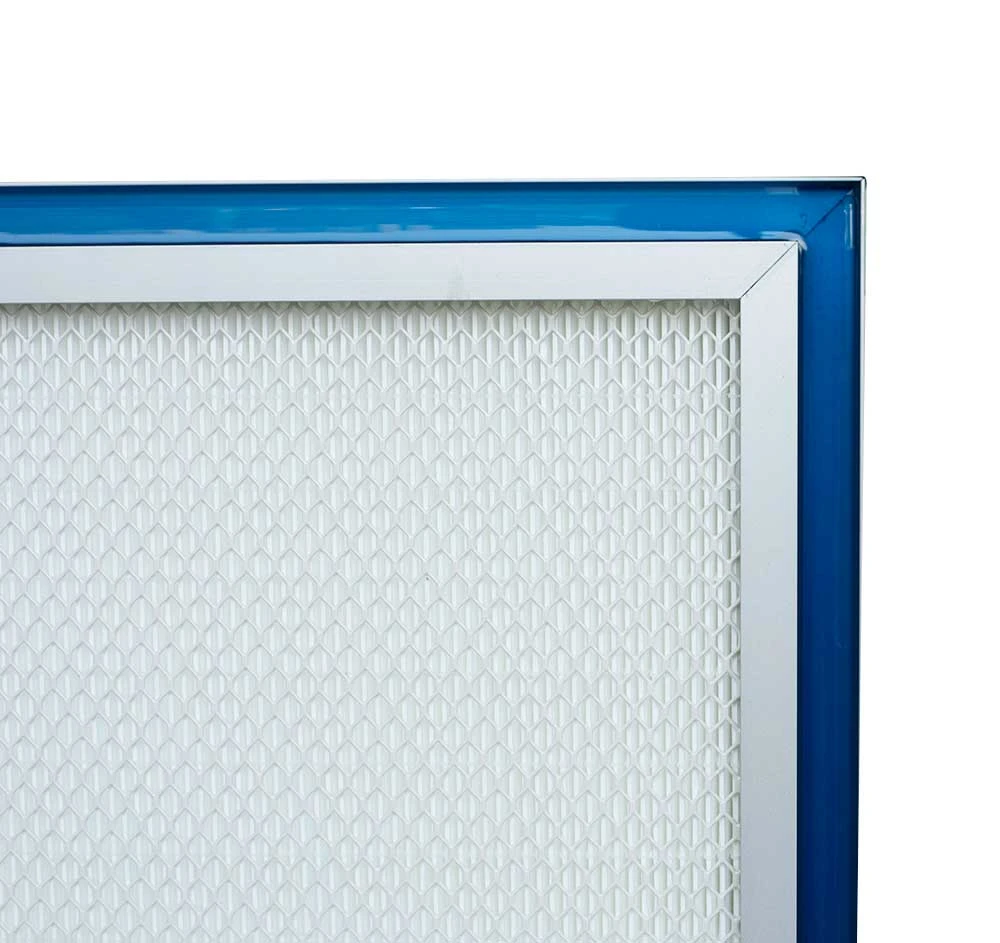

Fluid Seal filters feature an integral groove filled with gel at the air inlet side which ensures a perfect seal in housing systems. They are compact, lightweight and easy to install - particularly in terminal hood and fan filter modules.

High-performance protection for critical environments. Provides savings on overall operating costs by using the lowest-resistance fibreglass laminar flow HEPA/ULPA media on the market.
Technical Data
Efficiency
H14(EN1822)
Frame Material
Aluminium Alloy
Filter Media
High-efficiency Glass Fiber Filter Paper
Spacer Substance
Hot Melt Adhesive
Sealing
PU Seal Strip/PU Foam Seal/PU Strip
Temperature
40/80°C
Relative Humidity
Max 100%RH
Application
Cleanroom HVAC AHU Filtration Parts,
Pharmaceutical Company
,Hospital, Electronic Company...
Advantages
Big dust load capacity,  eliminate the replacement period, save money!!
1: Supply and exhaust of clean space or purification equipment

2: Two types of side liquid tank and top liquid tank

3: Reliable sealing effect

4: Polyurethane gel has good resilience and can be disassembled many times

5: Dry and wet double seals are available for special needs
Installation Size and Pressure

Model
Size
(mm)
Airflow
(m3)
Initial
 Pressure
(Pa)
Final
Pressure
(Pa)
Efficiency
(MPPS)

YWGB410.410-93H14

410×410×93
500









220









450






99.995%≤E<99.9995%
YWGB550.550-93H14
550×550×93
1000
YWGB650.650-93H14
650×650×93
1500
YWGB750.750-93H14
750×750×93
2000
YWGB370.370-93H14D
370×370×104
500
YWGB510.510-93H14D
510×510×104
1000
YWGB610.610-93H14D
610×610×104
1500
YWGB710.710-93H14D
710×710×104
2000
*Counting Efficiency
Testing
Factory Cleanroom
