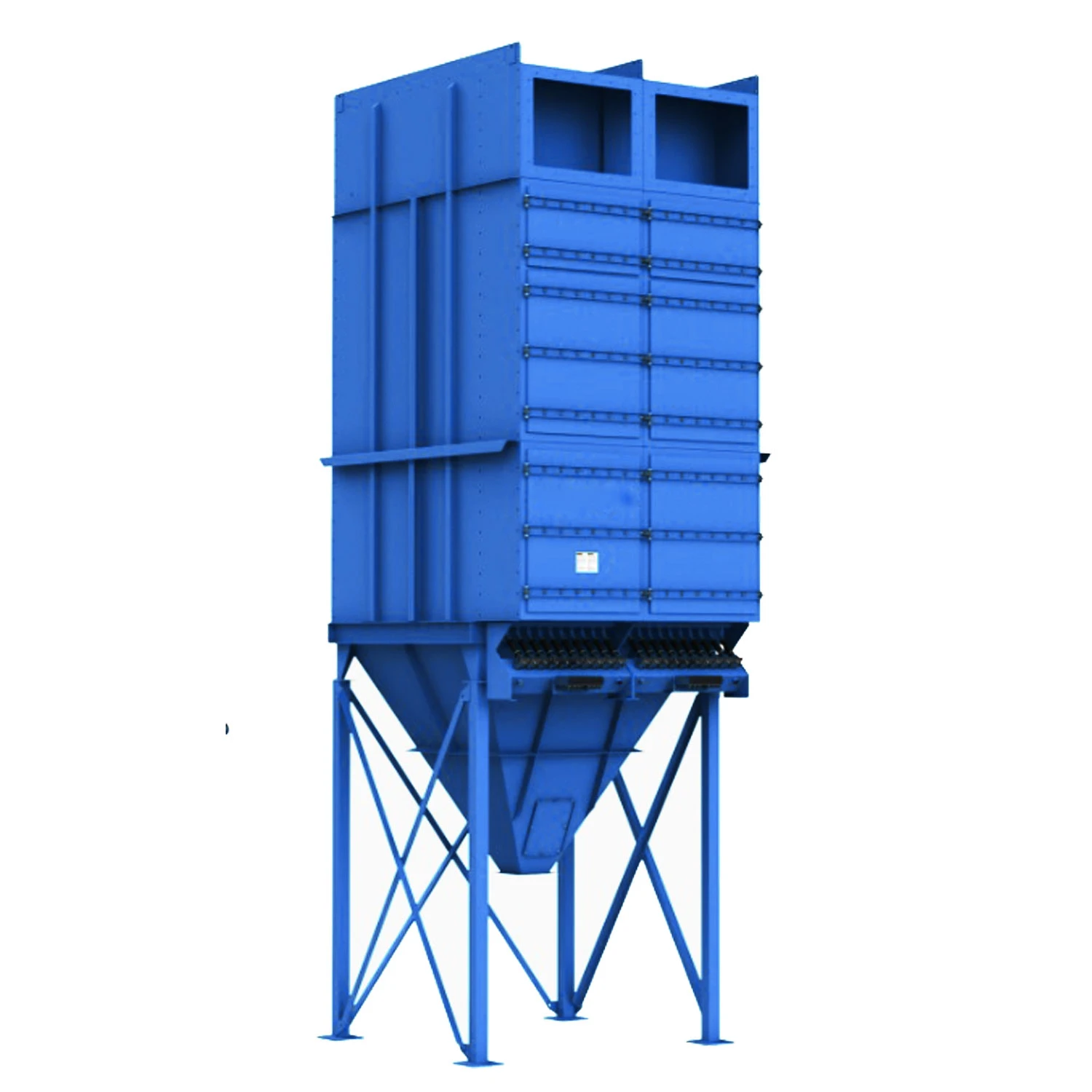

Donaldson Type Dalamatic Dust Collector

Review

Description

Donaldson Type Dalamatic Baghouse Dust Collectors, DLMC Dust Filtration Equipment

PROVEN PERFORMANCE, COMPACT DESIGN

The versatile Dalamatic series of dust collectors deliver a powerful solution for nearly any dust filtration application. These collectors come in two models: the Dalamatic Cased (DLMC) is a stand alone collector that can be ducted to many different applications; the Dalamatic Insertable (DLMV) is a versatile collector that can be inserted into various applications, such as bins, silos, bunkers, storage vessels or transfer points. Both models are continuous-duty dust collectors designed to handle the most difficult product recovery applications.

THE DALAMATIC FEATURES:

CONTINUOUS COLLECTION

Provides continuous filtration of high dust concentrations at high filtration velocities and constant levels of resistance in almost any industry and application

COMPACT DESIGN

Unique modular design allows for installation in the most space restricted areas. Envelope-shaped bags maximize the amount of media in a given space and allow for increased space between bags, minimizing the chances of bridging

FLAT BAG FILTERS

Provide better surface loading and better pulse cleaning reducing maintenance and operating costs

HELIX TUBE FILTERS

Spunbond polyester media laminated with an ePTFE membrane for even greater filtration efficiency

VERSATILITY

A full range of sizes and types of bags are available for a wide variety of dust collection applications

FLEXIBLE, EFFECTIVE FILTER MEDIA

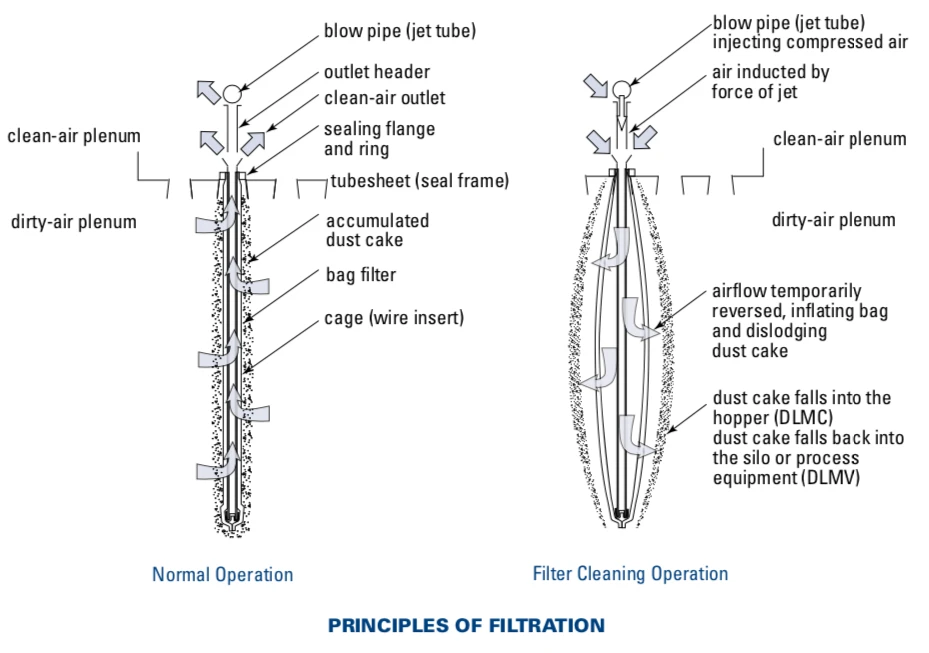

The Dalamatic advantage is found in the breakthrough technology of Dura-Life bag filters in an envelope shape. The envelope shape provides greater movement of the bag to dislodge more challenging dust cakes during filter pulsing.

  • Dust accumulates on the outer surface of the filter bag as air penetrates the media

  • The blowpipe (jet tube) injects a burst of compressed air into the bag filter

  • Airflow is then briefly reversed, inflating the bag filter and dislodging dust

  • The dislodged dust cake falls into the collection hopper for final removal or directly back in the process.The envelope-shaped bag filter, which is mounted on a unique
    wire frame, ensures optimum airflow and thorough cleaning

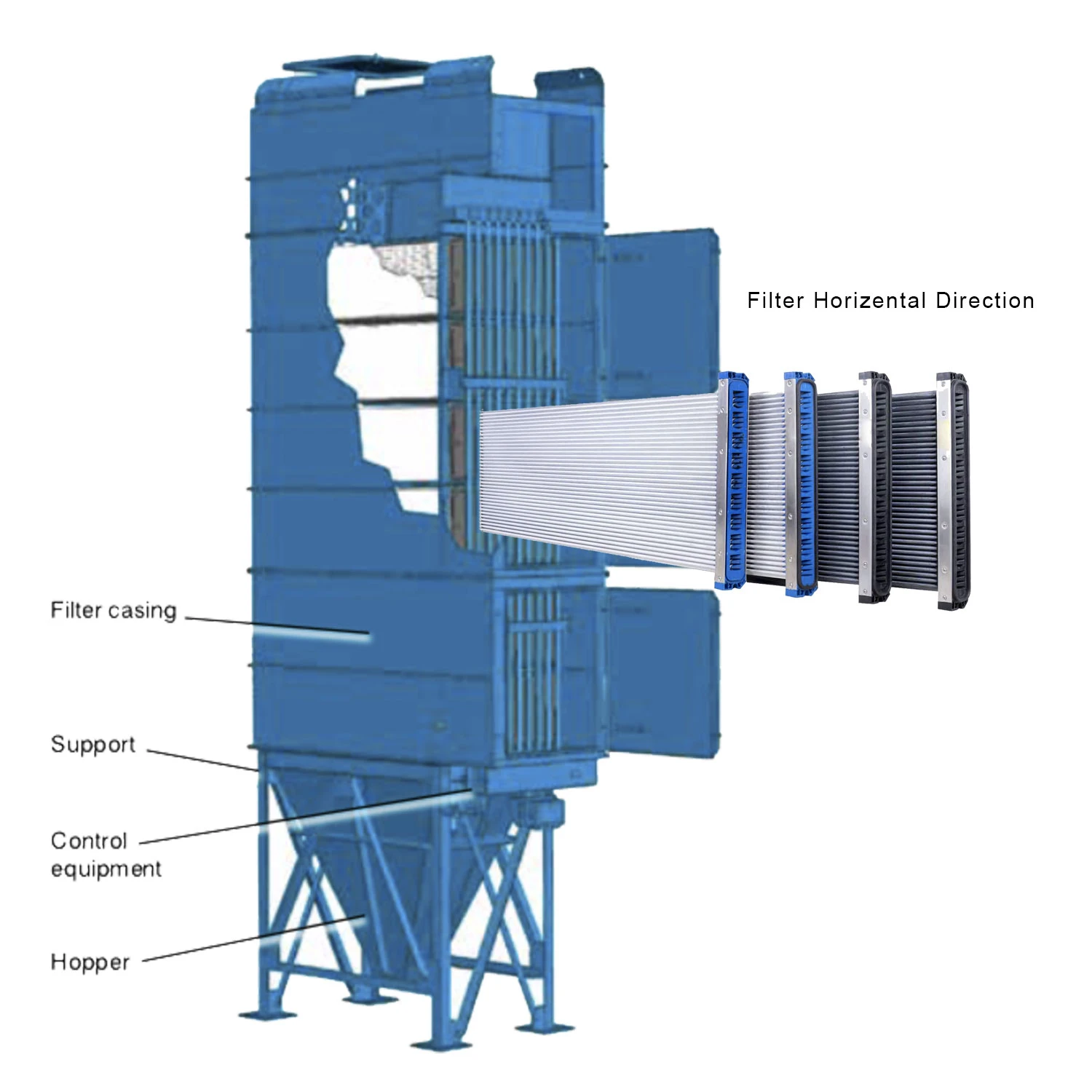

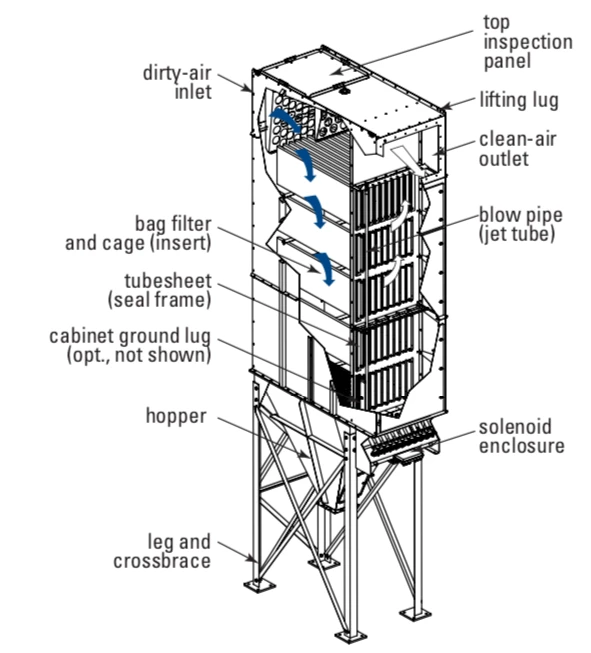

DALAMATIC CASED
(DLMC)

  • 1:Envelope-shaped bags provide maximum filter area per given space and ensure efficient cleaning

  • 2:Air volumes range from 1500 to 85,000 cfm (2,548 to 144,385 m3/h)

  • 3:Modular design gives dimensional and capacity flexibility

  • 4:Downward airflow pattern minimizes dust re-entrainment

  • 5: Side doors provide easy, clean side access to filters

  • Standard leg pack meets IBC 2009 requirements

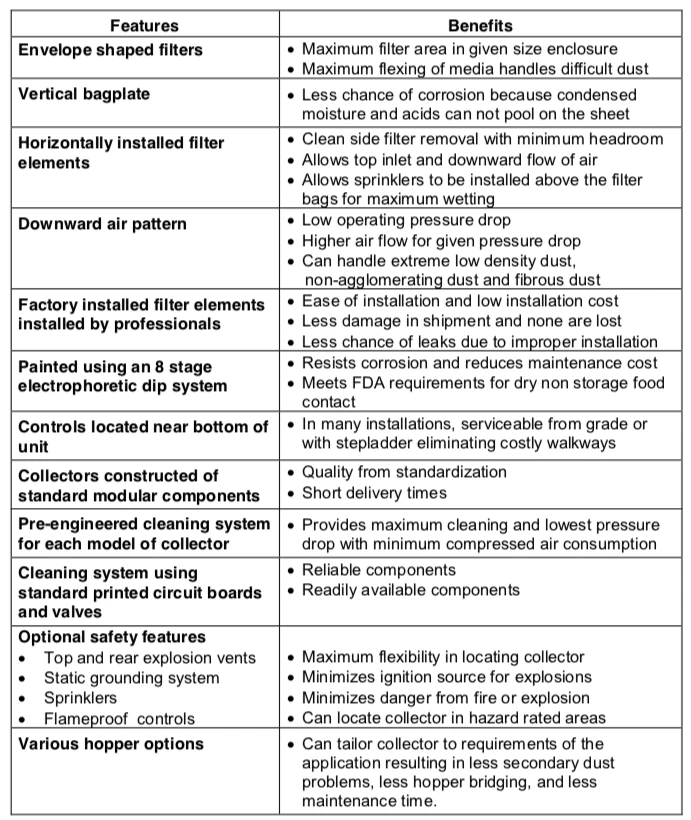

ADVANTAGES

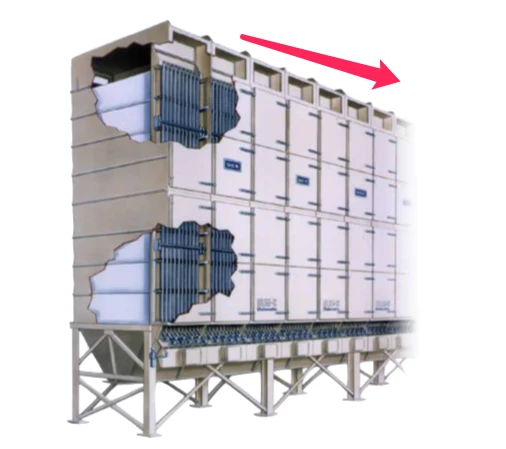

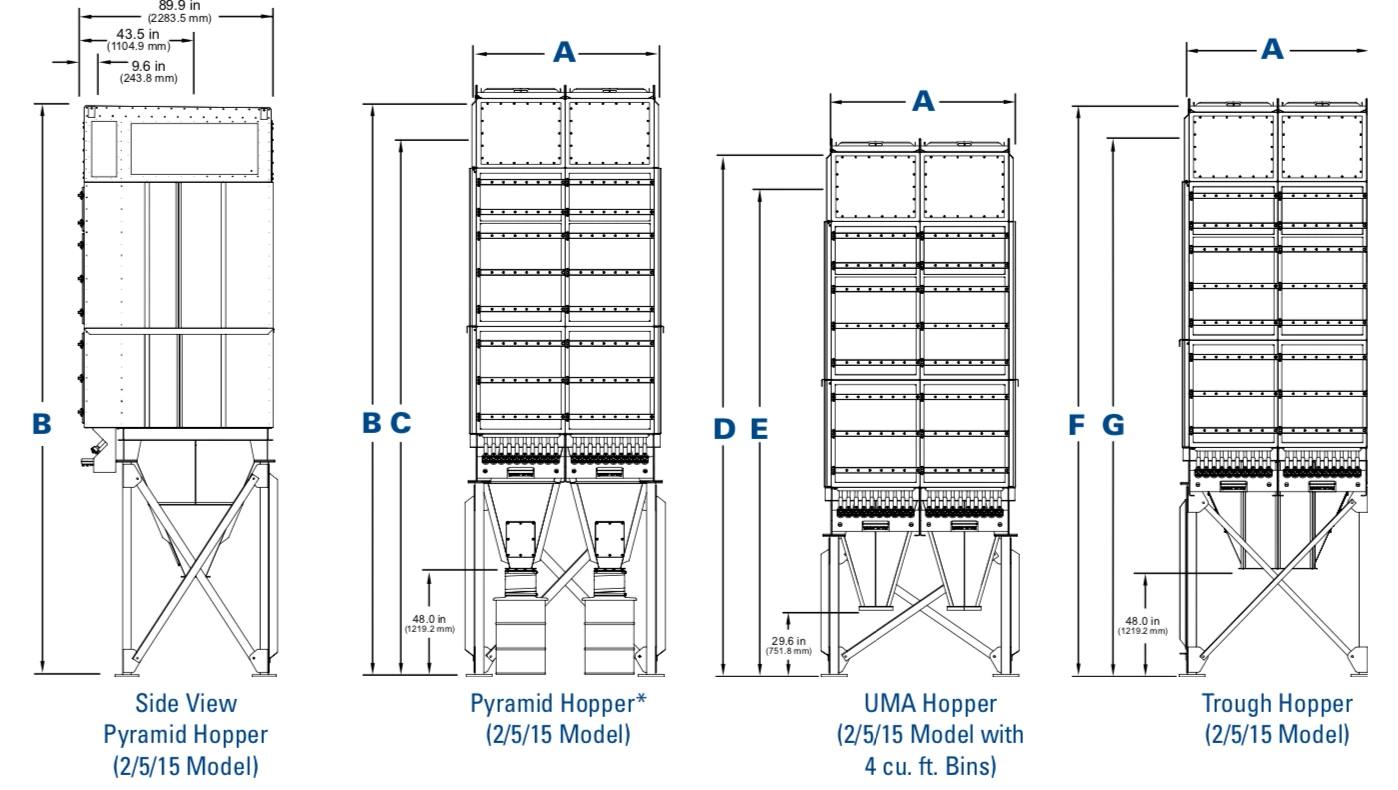

MODULAR DESIGN

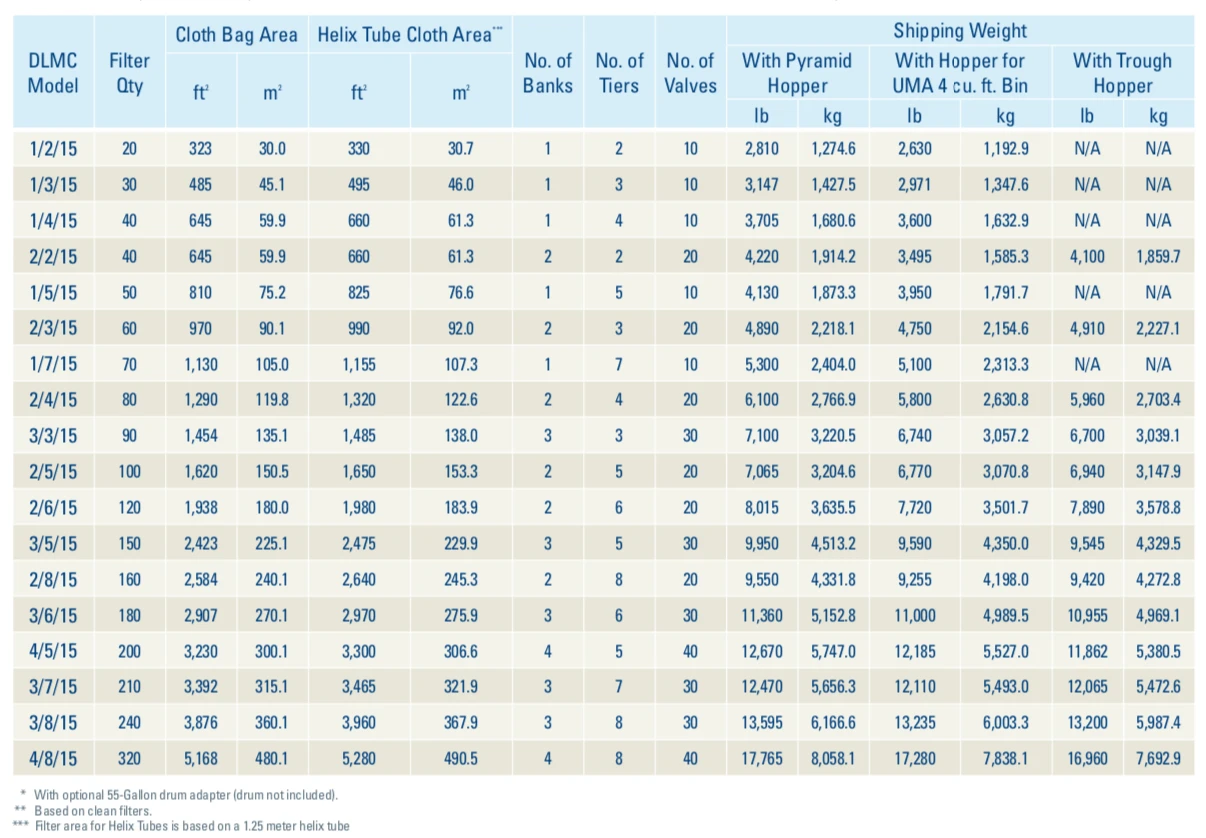

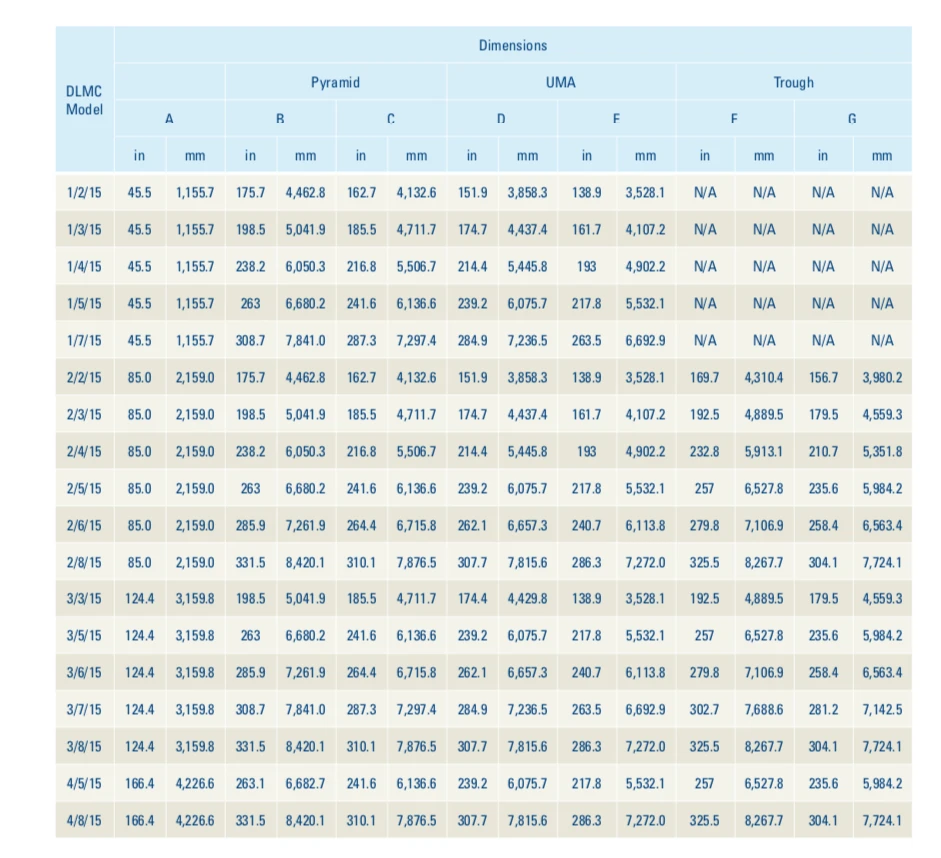

PARAMETER OF DUST COLLECTOR
